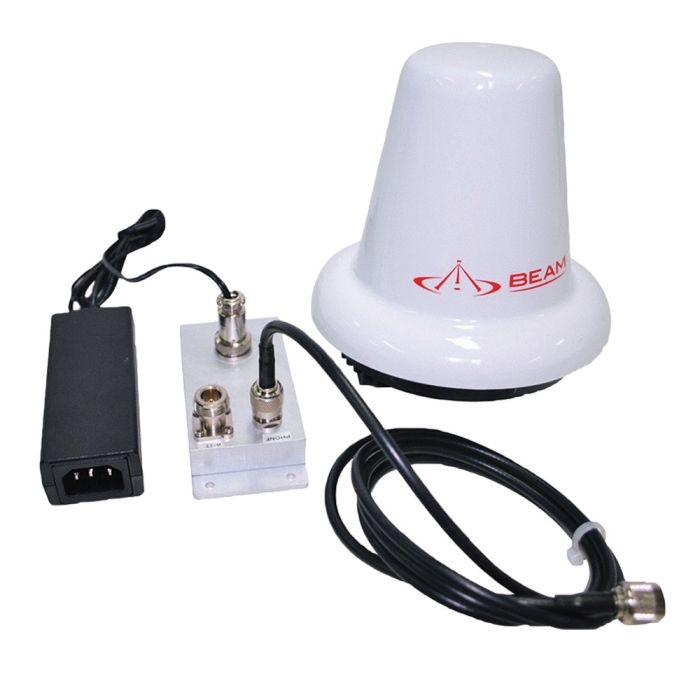

BEAM Iridium Active Antenna (RST740)
Beam RST740 Iridium Active Antenna is a small, omni-directional antenna with a high quality enclosure. It is designed to work on Iridium BEAM docks and terminals where long RF cables are needed. This product is designed for use with active cables only. It allows for cable runs ranging from 23m to more than 100m (328 feet). It comes complete with a power supply [15V DC output].
Where an installation exceeds 20m / 60’ it becomes more cost effective to use an Active/Powered Iridium antenna that allows much thinner and cheaper cable to run up to 100m / 300’ where this would never be possible with a passive Iridium antenna. The Active Antenna RST740 will work on all Beam products and any Iridium devices, however requires an approved Beam Active Antenna cable for use in order to manage the power amplification across the RF line to the antenna.
NOTE: Combining an Active Antenna with Standard Cables will damage the Antenna.
|PRODUCT TYPE||SATELLITE PHONE|
|USAGE AREA||100% GLOBAL|
|OPERATING TEMPERATURE||-25°C to 55°C (-13°F to 131°F)|
|COMPATIBLE WITH||IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505|
|STORAGE TEMPERATURE||-40°C to +80°C (-40°F to 176°F)|
• Iridium approved
• High quality enclosure
• Active antenna
• Pole/Mast mounting
• White small size/footprint
• Omni directional
• Supports long cable runs
• Power breakout box included (required 9-32 VDC)
• 12 month repair or replacement warranty
