Quick Deploy / FlyAway VSAT Satellite Internet Antennas
Quick deploy, flyaway systems vary in sizes from 75cm, 1.2m, 1.8m or 2.4m VSAT antennas that can be used globally for recreation or business operations for continuous and reliable telecommunications. The portable flyaway satellite systems are stored in a carry box or bag for easy portability and allow for quick deployment on the ground to access high-speed satellite Internet.
Automatic versus Manual
Flyaway VSAT antenna models can either acquire satellite signals automatically or need manual configuration using a controller. Once set up the VSAT acts as a Wi-Fi and phone access point providing full telecommunication services.
Optimized for Ku, Ka, or C-band frequencies, automatic portable VSAT systems make it simple for quick installation with a self-pointing and auto-acquiring satellite signal. Dish sizes from 1.2meter usually provide best performance that tolerates rain fade.

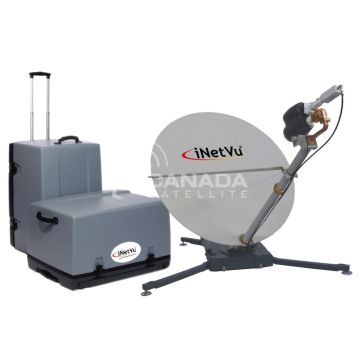

The iNetVu range of flyaway VSAT antennas come in dish sizes between 75cm and 1.8m and provide reliable communication for military, SNG, and commercial operations. Signal acquisition is completed within 2 minutes with leveling capabilities for uneven surfaces.
The Cobham 5075GX and 5120 auto-deploy systems can be set up with minimal satellite experience. Easy to configure and operate, they allow instant access to any broadband application over satellite. For continuity of business operations, remote video conferencing, and internet cloud services, as well as voice, radio, fax, and live broadcast, the Cobham range suits any industry.
Intellian LP100 VSAT is a high-end, rugged, man portable, quick deployable satellite land terminal that’s easily deployed without tools being required. Designed for fail-safe operations in unpredictable environmental and power failure events. Manual operation is also supported. One-click to track satellites and one-click to stow for transport.
Motorized flyaway antennas from AvL are available in a 1.0m tri-band antenna, 2m multi-band, and 2.4m quad-band systems. The AAQ controller helps manage operation to interface with any modem, RF electronics or satellite service. They include a motorized AvL cable drive for reliable positioning and are MIL-STD-188-164A compliant.
iNetVu, AVL, and Cobham antenna systems can be manually configured with an assisted pointing tool to obtain a satellite signal within minutes.
iNetvu antennas come in 80cm and 100cm Ku, Ka, or X-band systems with a carry case bearing a total system weight of about 20kg. Easily configured, they offer quick access to satellite communications for any application that requires remote connectivity in a rugged environment.
This Cobham Explorer manual point 75cm VSAT systems ensure high-quality connectivity for vital communication whatever the conditions. The GX model is configured specifically for operation on the Inmarsat Global Xpress (GX) Ka-band network. It includes a separate GX base and allows for switching between Ka-band networks.
AVL VSAT systems offer different sizes from 60cm to 2.4meter dishes that are lightweight, portable, with robust carbon fiber reflectors and bases, and quick to assemble. AvL’s Az/El positioners feature easy pointing and fine-tuning in the most extreme conditions.
