Beam IsatDock PRO is an intelligent docking station for the IsatPhone Pro specifically designed to support accessing voice services via Bluetooth, RJ11 / POTS, hands-free speaker phone or the active privacy handset attached to the unit.

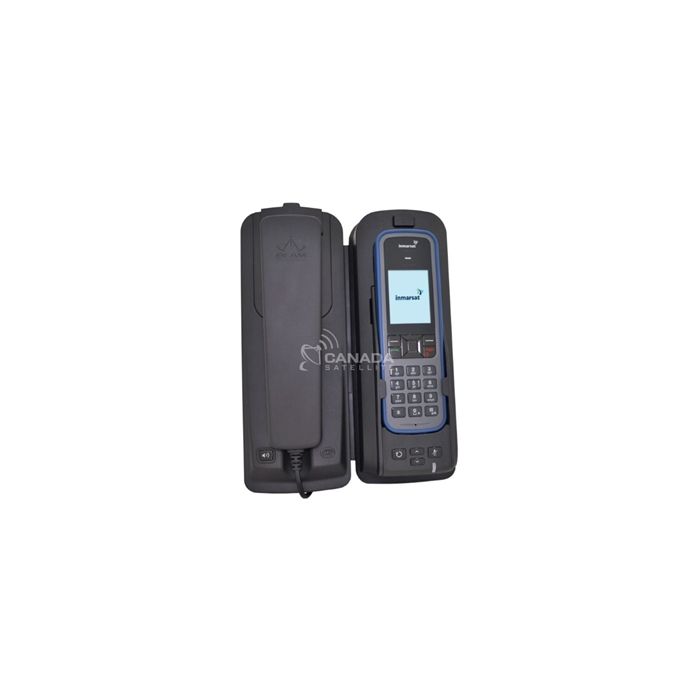

Beam IsatDock Pro for Inmarsat IsatPhone Pro
Beam IsatDock PRO is an intelligent docking station for the IsatPhone Pro specifically designed to support accessing voice services via Bluetooth, RJ11 / POTS, hands-free speaker phone or the active privacy handset attached to the unit.
. High quality ABS Plastic
. Single action insertion mechanism
. Key lockable & securable to wall/desk
. Wall or desk mounting options
. Accessible control buttons
. Slimline privacy handset
. Integrated antenna connections
. Inbuilt speaker / microphone
. Cable routing LHS/TOP/BOTTOM
OTHER KEY FEATURES . Active privacy handset
. Inbuilt handsfree speaker phone
. Status LED with adjustable brightness
. USB data access
BUTTONS ON DOCK . Ringer volume up/down
. In-call volume up/down
. Last number redial
. In-call mute
. Speaker/hands free button
POWER . 9 ? 32V DC Input
. Included 110/240V AC Plug pack
INTELLIGENT POTS/RJ11 INTERFACE . Support up to 600m of RJ11
. Dial, Ring & Busy Tones
. Integrated to PABX System
. Support standard corded & cordless phones
. Auto-dial & speed dials available
GSPS Network
Power Specifications Power Input Voltage
9 -32V DC
Physical Specifications
Dimensions ? mm
Dimensions - inches
IsatDOCK
270 x 189 x 101
10.6 x 7.4 x 4
Environment Specifications
Operating Range
Storage
Humidity
Degrees ?C
-20 to +55
-20 to +70
<= 75% RH
Degrees ?F
-4 to +131
-4 to +158
Connectors / Interfaces POTS/RJ11
Inmarsat Antenna
GPS Antenna
9-32 V DC
Privacy Handset Port
Configuration Port
Speaker phone
RJ11/2-wire, complex or 600 Ω, 5REN, 600m adjustable dial/busy tones/frequency, adaptive Z
TNC-Female
SMA-Female
4-way microFit (AC/DC adator, or DC lead)
RJ9 connector
USB Micro
Inbuilt speaker / microphone
KIT CONTENTS Pro IsatDOCK
110-240V AC Plug Pack
Privacy Handset
User Manual
Quick Start Guide
9-32 DC Power Cable
Handset locking Key
In building ? PBX integration
. Remote farms / communities
. Regional and remote offices / branches
. Back up office communications
. Emergency Communications
. Mine sites
. Recreational Vehicles / Motor homes
ISD710 Maritime Active Antenna
. ISD715 Transport Active Antenna (Magnetic)
. ISD720 Transport Active Antenna (Bolt)
. ISD700 Fixed Passive Antenna
. ISD932 6M cable kit
. ISD933 12m cable kit
. ISD934 18m cable kit
. ISD935 30m cable kit
. RST975 RJ 11 / POTS phone
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| BRAND | BEAM |
| MODEL | ISATDOCK PRO |
| NETWORK | INMARSAT |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT VOICE |
| ACCESSORY TYPE | DOCKING STATION |
| COMPATIBLE WITH | ISATPHONE PRO |
