Icom’s IC-SAT100 allows users around the world to communicate with a group of PTT radios at the push of a button. To do this, the IC-SAT100 utilizes Iridium® satellite network covering the earth including both poles providing wide area global communication anywhere on the planet.

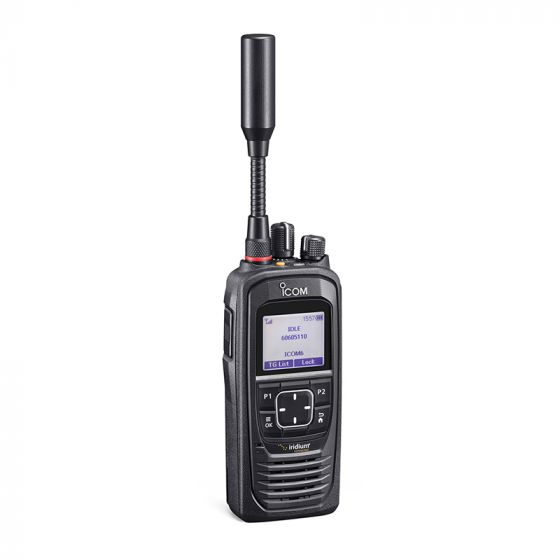

ICOM IC-SAT100 PTT Satellite Radio The ICOM IC-SAT100 operates via SATELLITE PTT (Push-To-Talk), which is a two-way radio system that uses the Iridium® satellite network. It can be used as a communication tool in remote, isolated areas where there is no mobile phone or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, SATELLITE PTT can provide a stable back-up, independent from other networks. Additionally, unlike satellite phones, IC-SAT100 users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.
The ICOM IC-SAT100 PTT Satellite Radio is quick and easy to set up via the existing Iridium® Command Center and continues to support up to 15 talkgroups. Talkgroups can be shared enabling global interoperability among users, even when using different Iridium® PTT handsets.
The ICOM IC-SAT100 PTT Satellite Radio offers the following key features:
Waterproof, Dust-tight and Durable Body - provides IP67 waterproofing (1m depth of water for 30 minutes) and dust-tight protection, making it ideal for use in harsh outdoor environments. The radio also meets MIL-STD 810G specifications and has an operating temperature range from -30°C to +60°C (-22 °F to 140°F). Built-in Emergency Key - an easy to find button can be used for emergencies; allowing transmission of an emergency call to pre-programmed users. Powerful Audio - 1500 mW audio delivered from the internal speaker provides loud and clear communication, even in noisy environments. Long-Lasting Battery Life - The supplied Lithium-ion (Li-ion) battery pack provides up to 14.5 hours of operation. Secure Communications - provides secure conversations with AES 256-bit encryption. Other features include:
Multiple language display (English, Chinese, French, Japanese, and Spanish) SMA type antenna connector for an optional external antenna AquaQuake™ function clears any water ingress that may penetrate the speaker grill of the unit USB charging (USB Micro-B type)
More Information
PRODUCT TYPE
SATELLITE PTT
USE TYPE
HANDHELD
BRAND
ICOM
MODEL
IC-SAT100
NETWORK
IRIDIUM
CONSTELLATION
66 SATELLITES
USAGE AREA
100% GLOBAL
SERVICE
IRIDIUM PTT
FEATURES
GPS, SOS, BLUETOOTH
HEIGHT
135 mm (5,3 pouces)
WIDTH
57.8 mm (2.3 inch)
DEPTH
32,8 mm (1,3 pouces)
WEIGHT
360 grammes (12,7 oz) avec BP-300 et antenne
FREQUENCY
L BAND (1-2 GHz)
INGRESS PROTECTION
IP 54, IP 55, IP 67
ACCESSORY TYPE
HANDSET
OPERATING TEMPERATURE
-30°C to 60°C (-22°F to 140°F)
SUPPORTED LANGUAGES
ENGLISH, CHINESE, FRENCH, JAPANESE, SPANISH
Whats Included: - ICOM IC-SAT100 PTT Satellite Radio - Battery pack, BP-300 - Belt clip, MBB-5 - Antenna, FA-S102U - Desktop charger, BC-241 - AC adapter, BC-242
