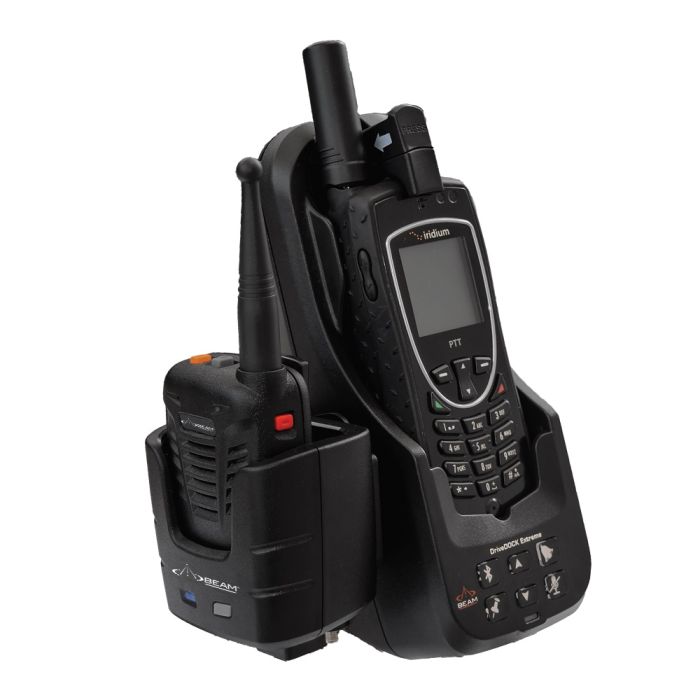

Beam DriveDOCK Extreme Wireless Push-To-Talk (PTT) Bundle (EXTRMDD-PTT-W1)
The wireless handset’s rugged premium remote speaker microphone, deliver outstanding clear audio in every situation when connected to the Beam Extreme Docking Station. The microphone features a highly tactile PTT button that provides both mechanical and audible feedback every time you press, so you know your call is being sent.
| Privacy Handset (Line In/Out) | 4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle. |
| External Speaker and Microphone | One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone. |
| Data Port (USB) | USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile. |
| Alarm (Alert) Loop | Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output. |
| Horn Output / Audio System Mute | Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability. |
| Power Cable | 4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc |
| LEDs/Buttons | Bluetooth, Ringer, Track, Mute, Up & Down |
| PART # | EXTRMDD-PTT-W1A + 9575PTT |
|---|---|
| PRODUCT TYPE | SATELLITE PHONE, SATELLITE PTT |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM PTT |
| USE TYPE | VEHICULAR |
| ACCESSORY TYPE | BUNDLE |
| FREQUENCY | L BAND (1-2 GHz) |
| COMPATIBLE WITH | IRIDIUM PTT |
• Durable and reliable mic/speaker handset
• IP55 weatherproof compliance, built vibration and drop resistant
• Enhanced clear audio quality
• Compatible with existing BEAM DriveDOCK Extreme
• Supports BOTH Phone and PTT modes of the Iridium Network
• Ability to amplify PTT audio to external cabin loudspeaker
• Left or right side bracket mounting
• 3.5mm earpiece jack for optional earpiece accessories
