Iridium Beam Passive Antenna Cable Kit - 3m / 9.8ft (RST931)
In stock
- BRAND:
- BEAM
- PART #:
- RST931
- ORIGIN:
- United Kingdom
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Beam-Passive-Cable-RST931
C$432.10
Iridium Beam Passive Antenna Cable Kit - 3m / 9.8ft (RST931)

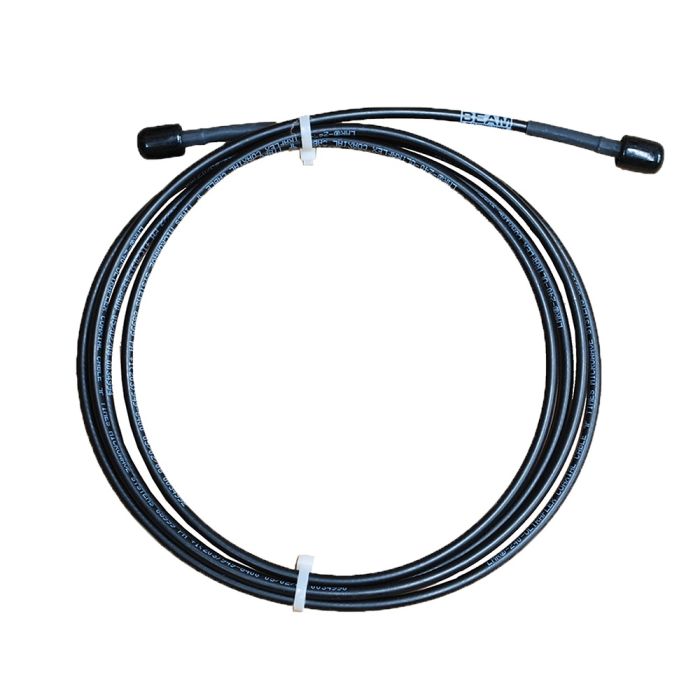

Beam RST931 Iridium 3 m (9 feet) antenna cable provides a flexible installation option for very compact installations, where a transceiver module is located close to the antenna and is pre-terminated with TNC male connectors.
• Within Iridium's 3dB Loss Specification
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested
Physical
| Length | m | ft |
| Iridium Coaxial Cable (Passive) | 3 | 9.84 |
| Dimensions | mm | inches |
| External Diameter | 6.1 | 0.24 |
| Bend Radius | 13.1 | 0.75 |
| Bend Radius - repeated | 63.5 | 2.5 |
| Weight | kg | lbs |
| Cable | 0.15 | 0.33 |
Connectors
| TNC-Male to TNC-Male |
Specifications
| PART # | RST931 |
|---|---|
| PRODUCT TYPE | SATELLITE PHONE |
| BRAND | BEAM |
| NETWORK | IRIDIUM |
| ACCESSORY TYPE | CABLE |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| FREQUENCY | L BAND (1-2 GHz) |
| FEATURES | PASSIVE |
| HARMONIZED TARIFF NUMBER | 85444210 |
| LENGTH | 3m (9.8') |
| WEIGHT | 0.15 kg (0.33 lbs) |
