Iridium Beam TranSAT RST620B

C$4,468.83
Overview

TranSAT RST620B is an Iridium mobile or fixed satellite telephone that provides the option of a handheld or a completely hands free voice and data telephone for a wide variety of marine, land and air applications with a wide range of antenna options available.

BRAND:
BEAM
PART #:
RST620B
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Iridium-Beam-TranSAT-RST620

Iridium Beam TranSAT (Fixed) RST620
Beam TranSAT Fixed Satellite Telephone provides a complete hands-free voice and data telephone for a wide variety of marine, land and air applications. TransSAT operates in very much the same way you would expect a traditional car phone, providing a compact user handset that can be located close to the driver/captain, hands-free or private communications, integrated speaker, microphone and transceiver supporting a professional looking installation.

The terminal provides a compact fully functioned user handset and supports both hands-free and privacy modes of operation, automatically switching between either mode with the handset in or out of the cradle.

The system can also be used as a permanent non hands-free solution simply by not connecting the microphone. The loud ring indication through the speaker system makes it an ideal installation in a noisy environment.

The RST620 is equipped with an RS232 serial data port to access Iridium data services.

There are added features that enable the unit to be integrated into communications systems via the line in/out, serial data connectivity, radio mute, horn alert and a robust inbuilt 10 - 32 VDC power supply.

More Information
PRODUCT TYPESATELLITE PHONE
USE TYPEAVIATION, MARITIME, VEHICULAR
BRANDBEAM
PART #RST620B
NETWORKIRIDIUM
USAGE AREA100% GLOBAL
SERVICEIRIDIUM VOICE
FEATURESIRIDIUM CERTIFIED
FREQUENCYL BAND (1-2 GHz)
ACCESSORY TYPETERMINAL
CERTIFICATIONSIRIDIUM CERTIFIED

Beam TranSAT 620B Features
• Slim line compact installation
• Voice, SMS, SBD and Circuit Switched Data capable
• Compact fully functional user handset for privacy mode
• Full Duplex Hands-free calling
• Echo cancelling technology
• Mic / Audio Integration to communication systems
• Horn Alert / Radio Mute capable
• RS232 D9 Serial Interface
• Accessory / Ignition sense
• SMA Connectors – Iridium Antenna
• FCC, Industry Canada, and ITU approval
• 12 month repair or replacement warranty

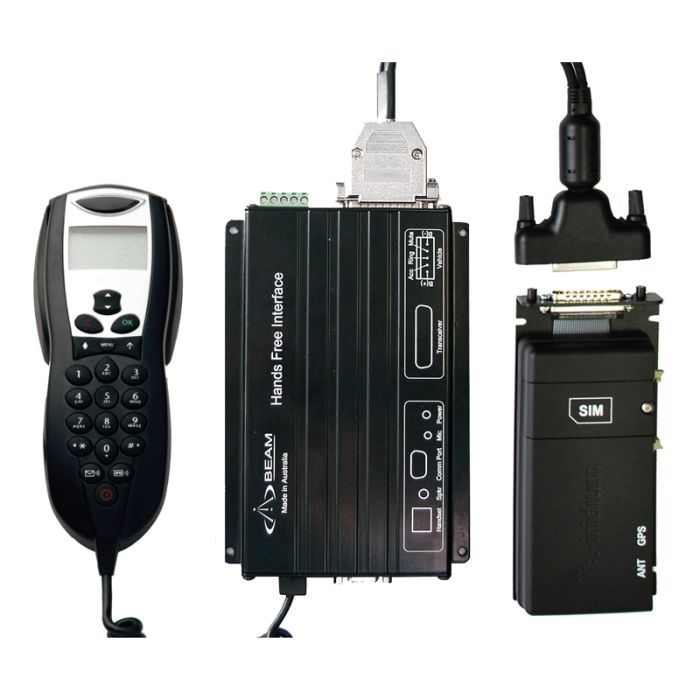

Beam RST620B package contains:
1 x RST620B Hands Free Interface (HFI) module
1 x RST970 (Intelligent Handset with cradle)
1 x Speaker
1 x Microphone
1 x 9522B Iridium L-Band transceiver
1 x L-Band transceiver bracket & Velcro fastener
1 x L-Band transceiver cable
1 x 3-wire Power cable harness & 2 Fuses
1 x SMA – TNC Antenna Cable Adaptor
1 x Socket wrench / Allen key
1 x Printed RST620B User Manual
1 x Printed Iridium Antenna Installation Guide

Iridium Global Coverage Map


Iridium Coverage Map

Iridium delivers essential communications services to and from remote areas where no other form of communication is available.  Powered by a uniquely sophisticated global constellation of 66 cross-linked Low-Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across airways, oceans, and polar regions. Together with its ecosystem of partner companies, Iridium delivers an innovative and rich portfolio of reliable solutions for markets that require truly global communications.

At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional local systems are unavailable.
