Iridium Edge Solar - Coming Soon!

Compare Devices Service Plan Required

BRAND:
IRIDIUM
MODEL:
EDGE SOLAR
WARRANTY:
12 MONTHS
Stock Status:
Out of stock
AVAILABILITY:
PRE-ORDER
Product Code:
Iridium-Edge-Solar-SBD-Modem

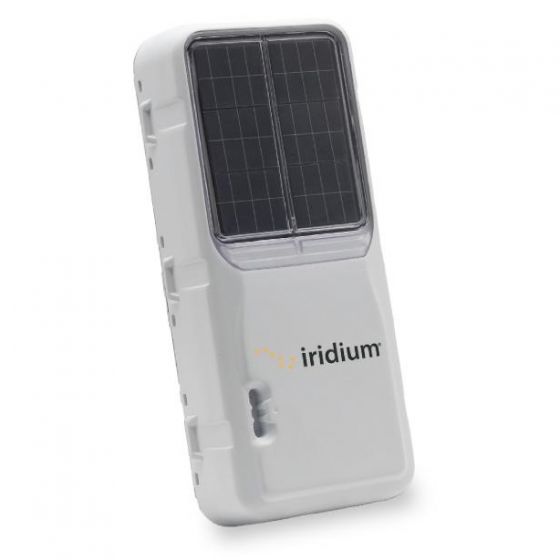

Iridium Edge Solar™

The Iridium Edge® Solar is a standalone and programmable, solar-powered Short Burst Data (SBD®) device that offers real-time GPS tracking and local wireless sensor and communication capabilities over Bluetooth. The product’s self charging, low maintenance, long field life and over-the-air configuration allow Iridium Value-Added Resellers to create distinct tracking applications that can also be implemented to create even more complex solutions.

Key Markets:

  • Fleet Management
  • Remote Monitoring
  • SCADA
  • Asset Tracking
  • Maritime
More Information
PRODUCT TYPESATELLITE INTERNET, SATELLITE M2M, SATELLITE MONITORING, SATELLITE TRACKING
USE TYPEFIXED, MARINE, VEHICULAR
BRANDIRIDIUM
MODELEDGE SOLAR
NETWORKIRIDIUM
USAGE AREA100% GLOBAL
SERVICEIRIDIUM SBD

Network:

  • Message Size: 240 bytes (Receive), 370 bytes (Transmit)
  • Frequency: 1616 – 1626.5 MHz

Mechanical:

  • Dimensions: 130 mm (L) x 80 mm (W) x 30 mm (H)
  • Ingress Protection: IP 67
  • Side and bottom cable exits

Environmental:

  • Operating temperature range: -40C to 85C
  • Storage temperature range: -40C to 85C

Interfaces:

  • RS232 AT command interface
  • On/Off control lines

Power:

    • Power Supply ( 9-32V), SAE J1455 Load dump protected
    • Reverse Polarity Protection
    • Maximum Power: 1.6W  (peak for short transmit burst)
    • Low Power Modes: < 100uA



Certifications:

  • Iridium® satellite network certification
  • FCC, IC, CE, Australia approvals
  • RoHS compliant

Iridium Global Coverage Map


Iridium Global Coverage Map

Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
