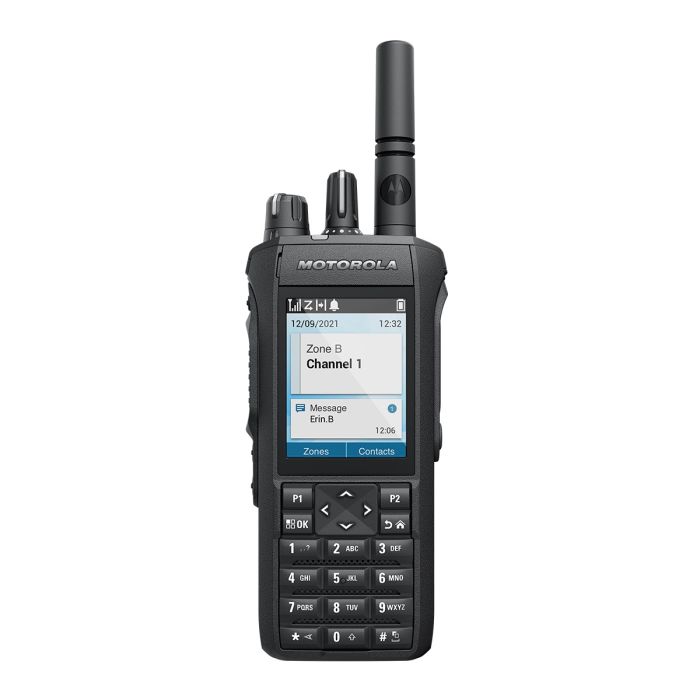

MOTOROLA MOTOTRBO R7 TIA VHF FKP BT WIFI GNSS PREMIUM PRA302HEG (MDH06JDN9XA1AN)

MOTOROLA MOTOTRBO R7 TIA VHF FKP BT WIFI GNSS PREMIUM PRA302HEG (MDH06JDN9XA1AN)

The exact model code MDH06JDN9XA1AN appears in Motorola Solutions’ own documentation portal as “MOTOTRBO R7, TIA, BT, Wi-Fi, GNSS Premium”, which confirms that this is a TIA-designated premium R7 variant rather than a generic family reference. Reseller listings further identify it as the VHF full-keypad premium version tied to the PRA302HEG platform naming.

What makes this model notable is the combination of full-keypad operation, Bluetooth, Wi-Fi, GNSS, and the R7 family’s intrinsically safe option under UL TIA-4950. Motorola’s North America and LACR data sheets both list the intrinsically safe option as a core R7 capability, while the official R7 product page highlights it alongside rugged construction and advanced audio features.

Design and Features

Full-Keypad Premium Configuration

This requested model is a full-keypad (FKP) premium radio. Motorola’s R7 data sheets list a 2.4-inch 320 x 240 pixel QVGA display and a modern, intuitive user experience for full-keypad variants, while reseller pages for MDH06JDN9XA1AN explicitly label it as FKP and Premium. That places it near the top of the standard R7 lineup for users who need richer navigation and direct on-device access to functions.

Advanced Audio Processing

Motorola makes audio performance the centerpiece of the R7 family. The official data sheets list Adaptive Dual Microphone Noise Cancellation, Automatic Acoustic Feedback Suppression, AI-trained Noise Suppression, Intelligent Audio, and programmable loudness up to 107 phons. Motorola’s brochure likewise says the R7 is engineered so teams can hear and be heard more clearly in noisy workplaces.

Wireless Connectivity and Location Features

The BT WIFI GNSS portion of the product name matches Motorola’s broader R7 specification set. Official R7 data sheets list Bluetooth 5.2, Wi-Fi 2.4/5.0 GHz, and WPA3 Wi-Fi security protocol compliance, while reseller listings for MDH06JDN9XA1AN explicitly include GNSS in the named configuration. That combination supports wireless accessories, over-the-air workflows, and location-aware deployment models.

Rugged Enterprise Build

Motorola’s official product pages say the R7 is built for harsh environments, and the current data sheets list IP68, IP66, and MIL-STD 810 credentials. Motorola also highlights disinfectant- and decontamination-resistant housing and a robust, corrosion-proof side connector, reinforcing that the radio is designed for sustained professional use, not light-duty communication.

Technology and Specifications

Band and Model Identity

Motorola’s R7 data sheets specify the VHF band as 136–174 MHz for full-keypad models. The exact requested SKU is presented by resellers as the TIA VHF FKP BT WIFI GNSS Premium model, and Motorola’s documentation portal confirms the exact part number as a TIA, Bluetooth, Wi-Fi, GNSS premium R7. Taken together, those sources support identifying MDH06JDN9XA1AN as the VHF 136–174 MHz premium full-keypad TIA model.

TIA / Intrinsically Safe Context

The TIA designation in the model name is important. Motorola’s official R7 data sheets and product page explicitly list an intrinsically safe option (UL TIA-4950) for the R7 family. A Motorola shop listing for the PMNN4810A battery further shows a TIA4950-certified intrinsically safe battery, confirming that Motorola supports a TIA-4950 safety ecosystem around applicable R7 models and accessories.

Display, Interface, and User Experience

Motorola specifies a 2.4-inch QVGA display and a modern, intuitive user experience for the R7 family, and reseller pages for the full-keypad version reinforce that this is the model intended for richer interaction. A dealer page for the R7 full-keypad version also highlights the display as useful for text messages and job-ticket style information, which aligns with the premium full-keypad positioning.

Signaling, Battery Life, and Platform Capabilities

Motorola’s R7 North America data sheet lists digital and analog signaling, WAVE PTX Backup Client with Seamless Voice Handover, and up to 28 hours of battery life for the family. Those are platform-level figures, but they help explain why the R7 is positioned as a future-ready handheld rather than a basic standalone radio.

Applications and Use Cases

The Motorola MOTOTRBO R7 is designed for demanding workplace communications. Motorola’s official pages emphasize harsh-environment readiness, superior audio, and dependable connectivity, which makes the MDH06JDN9XA1AN especially relevant for manufacturing, utilities, transportation, logistics, security, hospitality, facilities management, and education. The vertical examples are an inference from Motorola’s rugged-workplace positioning and the radio’s feature set.

Because this exact model is VHF, it is especially suitable where VHF is preferred for broader-area coverage and more open-site operation. That can include utilities, outdoor campuses, field maintenance, transport corridors, and large industrial sites. This VHF deployment point is an inference from the band and standard radio-planning practice, while the radio’s professional-use positioning is directly supported by Motorola’s product materials.

The TIA aspect also makes the model relevant where intrinsically safe operation under UL TIA-4950 matters. Motorola’s official R7 materials list the intrinsically safe option, and reseller pages for this exact SKU position it as a premium mission-critical model. For buyers needing a VHF radio with advanced interface features and a TIA-linked safety profile, this combination is especially significant.

Advantages / Benefits

One of the biggest advantages of the R7 premium platform is audio clarity. Motorola’s own literature repeatedly highlights the AI-trained and dual-microphone noise-suppression stack, which is arguably the radio’s most important differentiator in loud workplaces.

Another advantage is modern connectivity. Bluetooth 5.2, dual-band Wi-Fi, and GNSS make this model significantly more flexible than older-generation handhelds, especially for organizations using wireless accessories, radio-management tools, or location-aware workflows.

A third advantage is rugged, future-ready deployment. Motorola combines IP68/IP66 sealing, MIL-STD 810 durability, digital/analog signaling, and an intrinsically safe option in the same family. That makes the R7 attractive to organizations that want long-term fleet standardization rather than a short-cycle replacement radio.
