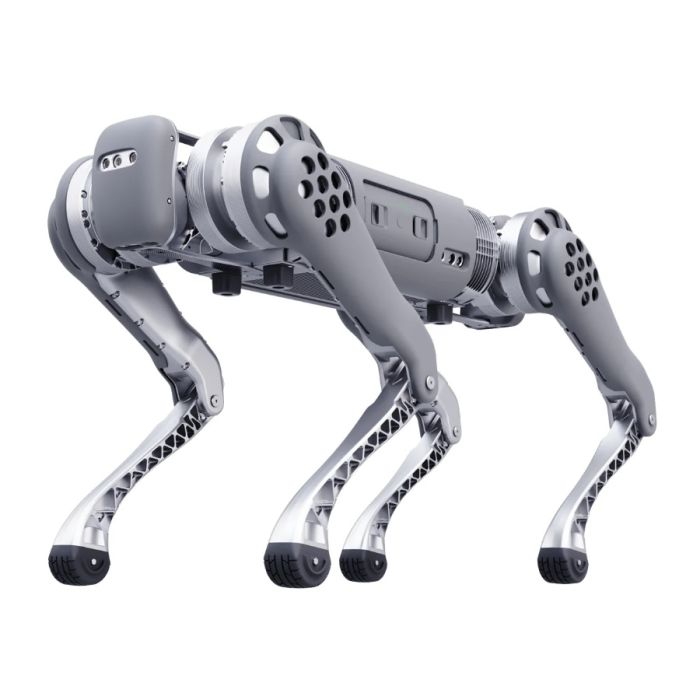

Unitree B1 Quadruped Robot

Unitree B1 Quadruped Robot

Positioned as a heavy-duty platform within Unitree’s professional lineup, the B1 emphasizes all-weather operation, high load capacity, and expansion space for sensors, compute modules, and task-specific payloads. On Unitree’s official materials, the B1 is presented as a “land” platform intended to replace humans in special or high-risk environments, supporting work in agriculture, industrial sites, and public rescue scenarios.

Industrial quadrupeds like the B1 occupy a niche between research robots and specialized field machines: they combine legged mobility (for stairs, uneven terrain, and cluttered spaces) with modular interfaces that allow integrators to add perception, communications, and mission equipment.

Positioned as a heavy-duty platform within Unitree’s professional lineup, the B1 emphasizes all-weather operation, high load capacity, and expansion space for sensors, compute modules, and task-specific payloads. On Unitree’s official materials, the B1 is presented as a “land” platform intended to replace humans in special or high-risk environments, supporting work in agriculture, industrial sites, and public rescue scenarios.

Industrial quadrupeds like the B1 occupy a niche between research robots and specialized field machines: they combine legged mobility (for stairs, uneven terrain, and cluttered spaces) with modular interfaces that allow integrators to add perception, communications, and mission equipment.

Design and Features

Industrial chassis and environmental protection

A central design goal of the B1 is resilience. Unitree’s documentation describes an industrial protection level and highlights dustproof/waterproof operation; a widely circulated brochure lists IP67 as standard with IP68 optional, aligning the platform with outdoor and industrial environments where splash, rain, mud, and particulate exposure are common.

Payload-focused mechanical layout

The B1 is characterized as a “super large load” quadruped. Typical published figures cite:

• Max walking load (payload): ~20 kg (with guidance to keep the carried load within 20 kg during operation)

• Max standing load: ~80 kg

This payload profile targets practical industrial add-ons such as inspection sensor pods, small manipulators, communications relays, or specialized toolkits.

Mobility and terrain handling

For mobility, common published specifications include:

• Max walking speed: ~1.2 m/s

• Maximum step height (stair climbing): ~20 cm

• Fording depth: ~1 m

Together, these figures indicate a robot intended to traverse indoor/outdoor transitions, shallow water, and moderately complex obstacles—typical constraints for industrial campuses, construction areas, and mixed-terrain patrol routes.

Technology and Specifications

Compute architecture

The B1’s onboard compute stack is commonly described as a heterogeneous system:

• Main control CPU: Intel i5-1135G7

• Sensing compute platform: Jetson Xavier NX ×3

This style of architecture separates real-time control and high-level perception workloads (e.g., depth processing, mapping, and detection), which is typical for mobile robots that must operate with low latency while also running advanced autonomy or teleoperation features.

Perception sensors

Unitree’s official B1 page lists multiple depth cameras:

• Intel RealSense D430 ×5

A multi-camera arrangement supports wide field-of-view coverage for obstacle detection and navigation, and can help with redundancy if a sensor is partially occluded by debris, rain, or harsh lighting.

Battery and endurance

The B1 uses a lithium battery system with commonly listed values:

• Rated capacity: 18,000 mAh

• Rated voltage: 51.8 V

• Rated energy: ~932 Wh

• Charge time: ~1–2 hours

• Endurance (representative): ~5 hours standing, ~2 hours continuous walking without load (noting dependence on load, terrain, and temperature)

These figures reflect a platform designed for mission blocks such as scheduled inspection rounds or patrol shifts, with recharge patterns compatible with depot-based operations.

Interfaces and expansion I/O

Industrial platforms typically differentiate themselves through integration options. The B1’s listed expansion interfaces include a mix of network, serial, USB, and fieldbus-style ports:

• Gigabit interfaces ×7, RS485 ×4, USB ×5, CAN ×4 (via an expansion board)

Such I/O capacity supports integration of LiDAR, thermal cameras, gas detectors, industrial radios, GNSS, additional compute, or custom payload controllers.

Applications and Use Cases

Industrial inspection and condition monitoring

A core use case for quadrupeds is inspection in facilities where wheeled robots struggle: stairs, debris, narrow passages, or mixed indoor/outdoor layouts. With multi-sensor payloads (vision, thermal, acoustic, gas), a B1-class platform can support:

• Routine rounds in factories, substations, refineries, and warehouses

• Visual checks of gauges, valves, and equipment states

• Thermal anomaly detection on motors, switchgear, and mechanical assemblies

Security patrol and situational awareness

Unitree frames the B1 as suitable for security patrols and “full scene coverage.” In practice, patrol robots are used for:

• Perimeter routes in industrial parks or campuses

• Remote observation in low-visibility or hazardous conditions

• Alarm verification (teleoperated or semi-autonomous)

Surveying, exploration, and agriculture

Unitree also highlights agriculture and surveys/exploration. Quadrupeds can traverse uneven ground, rows, and unpaved paths, making them candidates for:

• Farm monitoring and perimeter checks

• Terrain scouting and site surveying support

• Data collection in environments unsuitable for conventional vehicles

Public rescue and hazardous environments

Industrial quadrupeds are frequently discussed for fire/rescue support and hazardous response—especially as sensor carriers that reduce human exposure. Use cases can include:

• Delivering situational video into unstable or contaminated zones

• Carrying small payloads (medical kits, comms relays) into difficult terrain

• Reconnaissance in smoke, dust, or low-light conditions (depending on sensor fit-out)

Advantages / Benefits

• Legged mobility in complex environments: stairs, rough ground, and cluttered pathways where wheels may fail.

• Industrial integration readiness: multiple I/O options and compute capacity for autonomy, mapping, and payload control.

• Heavy-load orientation: payload and standing-load figures aligned with practical industrial tool and sensor packages.

• Environmental hardening: IP-rated protection (with IP68 frequently described as optional) suited to outdoor or wet/dusty deployment contexts.

FAQ Section

What is the Unitree B1 Quadruped Robot?

The Unitree B1 is an industrial-grade quadruped (“robot dog”) designed to carry sensors and payloads for field tasks such as inspection, patrol, surveying, and rescue support, with ruggedization features for operation in complex environments.

How does the Unitree B1 work?

The B1 combines legged locomotion with onboard computing (a main CPU plus additional perception compute) and multi-camera sensing. It can be used in teleoperated, semi-autonomous, or autonomy-assisted workflows depending on the deployed software stack and payload configuration.

Why is the Unitree B1 important?

Industrial quadrupeds are important because they can reduce human exposure in hazardous or inaccessible areas while collecting data and performing routine rounds. The B1’s design focuses on payload capacity and environmental resilience, enabling practical industrial integrations.

What are the benefits of the Unitree B1?

Key benefits include mobility over uneven terrain and stairs, support for meaningful payloads (around 20 kg walking payload guidance), IP-rated protection options, and expandable interfaces for integrating sensors, compute, and mission equipment.

Summary

The Unitree B1 Quadruped Robot is positioned as a rugged, payload-capable industrial “robot dog” built for real-world deployment across inspection, security, surveying, and rescue-adjacent workflows. With IP-rated protection options, a heterogeneous compute stack, multi-camera perception, and extensive expansion I/O, the B1 exemplifies the shift of legged robotics from research demonstrations toward operational tools in challenging environments.
