Genisom M1 Battery
In stock
- BRAND:
- GENISOM
- MODEL:
- M1 Battery
- PART #:
- M1 Battery
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Genisom-M1-Battery

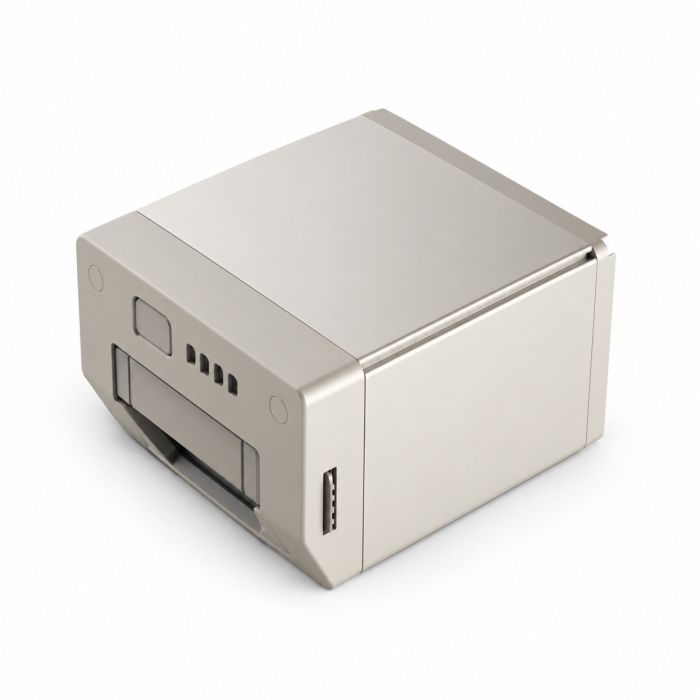

Genisom M1 Battery
An industrial robot dog is only as useful as the hours it can stay on task. The Genisom M1 is designed for long inspection rounds and patrols, and it carries two battery packs with a hot swap design so it does not have to stop when one runs low. The Genisom M1 Battery is that pack. With spares charged and ready, a team can swap a battery in the field and keep the robot working through a full shift instead of sending it back to charge.
Key Features
Hot Swap Ready
The M1 uses two battery packs and supports hot swapping, so one pack can be replaced while the robot stays powered. Spare packs turn charging time into working time.
54 V, 9.35 Ah
Each pack is rated at 54 V and 9.35 Ah, roughly 505 Wh of energy. Two packs together supply the M1's full 18.7 Ah battery capacity.
IP67 Protection
The battery carries an IP67 rating, matching the M1's dust tight, water resistant design for rain, mud and dusty sites.
About 1.5 Hour Charging
A pack recharges in about 1.5 hours, so a small rotation of batteries can keep pace with a working robot.
Compact Pack
At 154.2 x 95.6 x 182 mm and 3.3 kg, the pack is easy to carry in a field kit and quick to handle during a swap.
Genisom M1 Battery Specifications
| Specification | Genisom M1 Battery |
|---|---|
| Compatible robot | Genisom M1 |
| Rated voltage | 54 V |
| Rated capacity | 9.35 Ah |
| Energy (calculated) | About 505 Wh |
| Charging time | About 1.5 h |
| Cycle life | 200 cycles to 70% or more capacity retention |
| Protection | IP67 |
| Dimensions | 154.2 x 95.6 x 182 mm |
| Weight | 3.3 kg |
How Many Spare Batteries Do You Need?
| Use case | Suggested approach |
|---|---|
| Occasional use, single shift | Keep one spare pack charged |
| Full day field operations | Two or more spares so one is always charging |
| Unattended or scheduled operation | Spares plus the M1 Charging Dock |
| Fleet of several M1 robots | A shared pool sized to the number of robots and shifts |
Applications
- Extended inspection: keeping the M1 working through long substation, plant or pipeline rounds.
- Security patrol: swapping packs between patrols instead of waiting to recharge.
- Emergency response: carrying charged spares into the field for missions that cannot stop.
- Replacement: replacing packs that have reached the end of their service life.
- Fleet operations: building a shared battery pool for multiple robots.
Who Should Buy the Genisom M1 Battery?
Buy spare M1 batteries if your missions run longer than one charge, if you operate across multiple shifts, or if you need to replace an aging pack. Utilities, security providers, emergency teams and integrators running the M1 in the field will get the most from a battery rotation.
Before You Buy
- Confirm compatibility: check that the pack matches your M1 edition, including M1 Pro and M1 RoamerX Pro.
- Plan charging capacity: confirm how many packs your charger can charge at once and whether extra chargers are available.
- Plan for cycle life: the pack is rated for 200 cycles to 70% capacity; heavy users should budget for periodic replacement.
- Check shipping rules: at about 505 Wh, each pack is a large lithium battery and is normally shipped as dangerous goods; allow for this in delivery times and travel plans.
- Store correctly: follow the manufacturer's guidance on storage charge level and temperature.
Pricing and Availability
The Genisom M1 Battery is available to buy directly from this page. Current price and availability are shown at the top of the page. Add it to your cart to order, or add it to your quote for multiple packs or bundles with an M1 robot or charging dock.
Frequently Asked Questions
What is the Genisom M1 Battery?
It is the 54 V, 9.35 Ah IP67 battery pack used to power the Genisom M1 quadruped robot.
How many batteries does the M1 use?
The M1 uses two packs in a dual battery, hot swap design.
Can I change the battery without turning the robot off?
Yes. The M1 supports hot swapping, so one pack can be replaced while the robot stays powered.
How long does it take to charge?
About 1.5 hours.
Is the battery waterproof?
It is rated IP67, meaning it is dust tight and protected against water.
How long does the battery last over its life?
It is rated for 200 charge cycles while retaining at least 70% of its capacity.
How much does the Genisom M1 Battery cost?
The current price is shown at the top of this page. Add it to your quote for multi pack pricing.
Where can I buy the Genisom M1 Battery?
You can buy it right here on this page. Add it to your cart or request a quote.
Summary
The Genisom M1 Battery is the 54 V, 9.35 Ah, IP67 hot swap pack that powers the M1, with about 1.5 hour charging in a 3.3 kg package. For teams that need the M1 to keep working beyond a single charge, a few spare packs are the most direct way to extend every mission. If you are ready to buy, order from this page or add packs to a quote with your M1.
