Genisom M1 Charging Dock
In stock
- BRAND:
- GENISOM
- MODEL:
- Charging Dock for M1
- PART #:
- Charging Dock for M1
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Genisom-M1-Charging-Dock

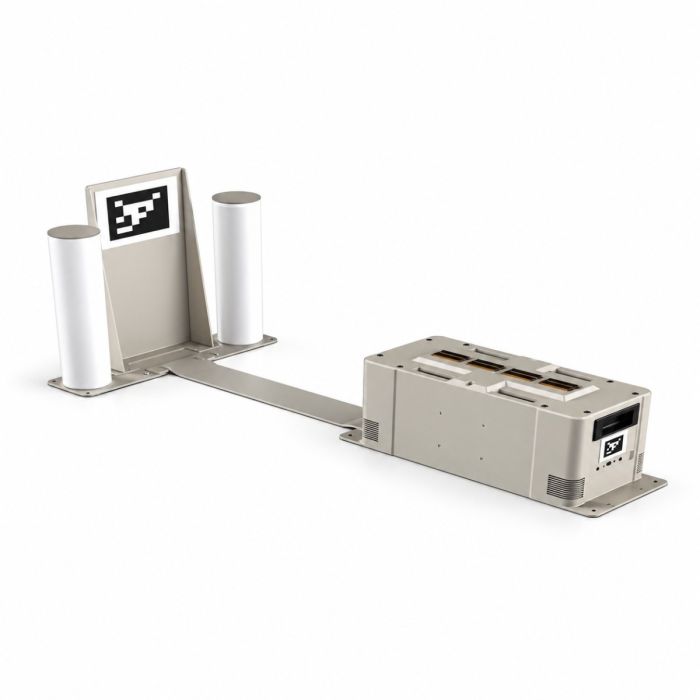

Genisom M1 Charging Dock
A robot dog that needs a person to plug it in is only autonomous until its battery runs low. For security patrols, overnight inspections and remote sites, that last human step is often what keeps a quadruped from running unattended. The Genisom M1 Charging Dock removes it. When the M1's battery gets low, the robot can head back to the dock, connect itself and recharge, then return to work without anyone touching it.
Key Features
Autonomous Docking and Charging
The robot's built-in app supports autonomous docking and charging. Instead of waiting for an operator, the M1 can return to the station on its own, align and begin charging.
Built for 24/7 Operation
Combined with the M1's dual battery hot swap design, automatic recharging helps extend unattended operating windows for patrol, inspection and monitoring missions.
54 V DC Output
The station converts AC 100 to 240 V input to a 54 V DC charging output at up to 10 A, and accepts a wide input voltage range for use on most mains supplies worldwide.
Positioning Poles Included
Positioning poles ship with the dock as part of the docking setup, helping define the charging location for the robot's approach.
4 m Cable
A 4 m cable gives flexibility in placing the station relative to a power outlet.
Genisom M1 Charging Dock Specifications
| Specification | Genisom M1 Charging Dock |
|---|---|
| Compatible robot | Genisom M1 |
| Input voltage | AC 100 to 240 V |
| Output voltage | DC 54 V |
| Maximum output current | 10 A |
| Cable length | 4 m |
| Docking | Autonomous, via the robot's built-in app |
| Package contents | Charging station, charging dock parts, positioning poles, shipping carton |
Applications
- Security patrol: overnight and around the clock patrols of parks, campuses and facilities without staff on hand to recharge.
- Power and industrial inspection: scheduled inspection rounds at substations, plants and pipe galleries with automatic recharge between runs.
- Remote and unattended sites: monitoring locations where operators are not present full time.
- Research and development: long duration autonomy testing without manual charging breaks.
Who Should Buy the Genisom M1 Charging Dock?
Buy this dock if you own or are buying a Genisom M1 and want it to run missions with minimal human involvement. It suits security providers, inspection teams, facility operators and research groups planning unattended or multi shift operation. If your M1 is always supervised and charged manually, a spare battery may be the simpler addition.
Which Should You Buy?
| If you need... | Choose |
|---|---|
| Hands free recharging for unattended missions | Genisom M1 Charging Dock |
| More runtime during a supervised shift | Genisom M1 Battery (hot swap) |
| The longest possible unattended operation | Charging Dock plus a spare M1 Battery |
| Manual control in the field | Genisom M1 Controller |
Before You Buy
- Confirm your M1 version: check that your M1 configuration and software support autonomous docking with this station.
- Choose a dock location: place the station on stable, level ground with clear space for the robot to approach and align.
- Plan power: provide a suitable mains outlet within reach of the 4 m cable.
- Consider the environment: ask about the station's own weather and ingress rating if it will be placed outdoors, since the M1's IP67 rating applies to the robot.
- Map the route home: make sure the robot's navigation map includes a reliable path back to the dock.
Pricing and Availability
The Genisom M1 Charging Dock is available to buy directly from this page. Current price and availability are shown at the top of the page. Add it to your cart to order, or add it to your quote if you are purchasing it together with an M1 robot, batteries or a multi unit fleet.
Frequently Asked Questions
What does the Genisom M1 Charging Dock do?
It lets the Genisom M1 return to the station and recharge automatically when its battery is low, without an operator plugging it in.
Does the M1 dock by itself?
Yes. The robot's built-in app supports autonomous docking and charging.
What is the output of the Genisom M1 Charging Dock?
The station outputs 54 V DC at a maximum of 10 A from an AC 100 to 240 V input.
What is included with the charging dock?
It includes the charging station, charging dock parts and positioning poles, shipped in a carton box.
How long is the charging cable?
The cable is 4 m long.
How much does the Genisom M1 Charging Dock cost?
The current price is shown at the top of this page. Add it to your quote for bundle pricing with an M1 robot or fleet.
Where can I buy the Genisom M1 Charging Dock?
You can buy it right here on this page. Add it to your cart or request a quote.
Summary
The Genisom M1 Charging Dock gives the M1 quadruped the ability to return, dock and recharge on its own, using a 54 V DC, 10 A station and the robot's built-in autonomous docking. For security patrols, inspection rounds and unattended sites, it is the step that makes around the clock operation practical. If you are ready to buy, order the dock from this page or add it to a quote with your M1.
