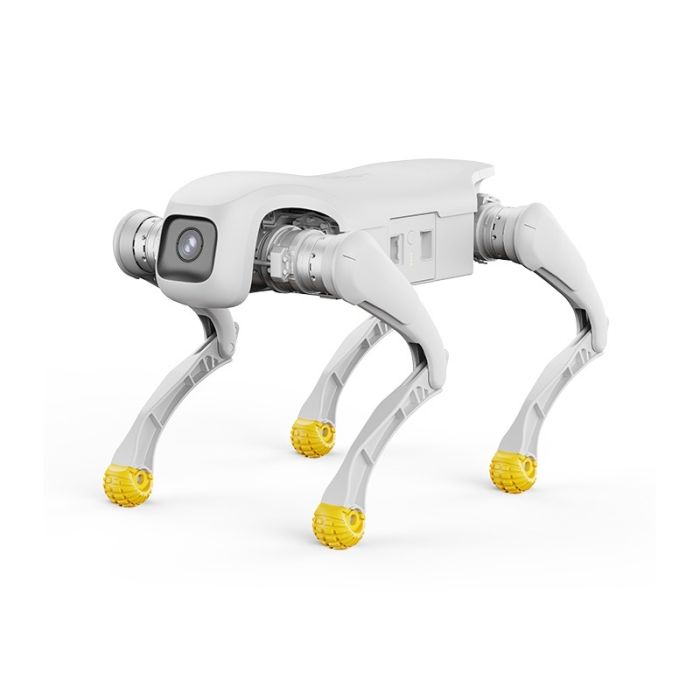

AgiBot D1 Edu Quadruped Robot Dog

AgiBot D1 Edu Quadruped Robot Dog

AgiBot D1 EDU is an education-focused quadruped robot in the D1 family developed by AGIBOT Innovation (Shanghai) Technology Co., Ltd.. Positioned as the D1 lineup’s academic/research configuration, D1 EDU pairs an SDK-forward software stack with the agility of AgiBot’s reinforcement-learning (RL)-based locomotion controllers. Publicly shared specifications for the D1 series highlight running speeds up to ~3.5–3.7 m/s, stair ascent around 16 cm, ~30° slope handling, and 1–2 hours of endurance (duty-cycle dependent), making the EDU trim a hands-on platform for embodied-AI coursework, perception research, and autonomy prototyping.

Design and Features

Education-first package and SDK access

AgiBot’s D1 Pro page explicitly notes that the “Edu version provides SDK development kit,” enabling payload integration and software customization. In practice, EDU bundles are delivered with developer documentation, example projects, and interfaces suitable for ROS/ROS 2-based labs, reducing time-to-first-experiment for university teams.

Agile, RL-driven locomotion

Core to the D1 family is an RL-trained gait stack that adapts step timing and posture to terrain irregularities, supporting self-balancing and disturbance rejection on gravel, steps, and ramps. Demonstrations and briefings for D1 Pro/EDU cite ~3.5–3.7 m/s top speed, 16 cm stairs, and ~30° slopes as headline mobility figures—benchmarks the EDU trim inherits.

Modular sensing and compute

D1 EDU kits commonly support RGB/depth cameras and 3D LiDAR add-ons for mapping and obstacle avoidance; education-market listings emphasize configurable payloads and onboard AI compute appropriate for perception and navigation assignments. Representative EDU product pages also mention payload capacities around the single-digit kilogram range (e.g., ~8 kg) to host research sensors.

Chassis, durability, and field work

While ingress protection is documented most clearly for the D1 Ultra (IP54) within the same series, the EDU trim targets general campus/outdoor use rather than severe industrial exposure; many labs treat it as a development mule for autonomy and perception before migrating code to more rugged platforms.

Technology and Specifications

Final specifications vary by bundle, region, and year; confirm in a commercial quotation.

• Locomotion control: Reinforcement-learning-based gait, with self-balancing and recovery behaviors; showcased in D1 Pro/EDU releases and videos.

• Speed & mobility (family figures): up to ~3.5–3.7 m/s, ~16 cm stair climbing, ~30° slopes; ~1–2 hours endurance depending on use.

• Payload (typical EDU listing): about ~8 kg for instruments and training payloads (verify per kit).

• Software & SDK: EDU version provides SDK for integration; commonly used alongside ROS/ROS 2 in academic labs.

• Sensors (configurable): support for depth cameras, RGB cameras, and 360° 3D LiDAR; choice varies by reseller and course objectives.

• Compute: Education kits are marketed with onboard AI compute options to run perception and planning in real time (specific CPU/TOPS options vary by bundle).

Applications and Use Cases

University teaching and STEM outreach

D1 EDU’s balance of price and agility makes it a centerpiece for hands-on robotics courses, where students implement sensor fusion, SLAM, vision-guided navigation, and policy fine-tuning on a real legged platform.

Graduate research and prototyping

PhD and MSc projects use the platform to study robust locomotion on uneven terrain, terrain classification, and safety-aware autonomy, often starting with the EDU kit’s SDK and scaling to more rugged D1 variants if environmental sealing is required.

Demonstrations, open days, and science communication

The spectacle value of a fast, stair-capable legged robot is useful for public demos, tech outreach, and sponsor showcases, while still exposing audiences to genuine embodied-AI concepts such as RL gaits and perception-driven avoidance.

Early inspection and security pilots (supervised)

Some institutions trial D1 EDU for light patrols in controlled environments to validate sensor stacks (LiDAR + depth + thermal) and autonomy pipelines before moving to higher-IP variants (e.g., D1 Ultra).

Advantages / Benefits

• Academic-ready SDK: The official note that the EDU version “provides SDK” reduces integration friction for coursework and lab projects.

• High agility for the price tier: Family-level specs—~3.5–3.7 m/s, 16 cm stairs, ~30° slopes—enable credible experiments in navigation and recovery.

• Modular sensing: Support for depth/3D LiDAR lets instructors design mapping and obstacle-avoidance labs without bespoke hardware development.

• Pedagogical breadth: Suitable for control, perception, planning, and systems integration modules in a single physical platform.

• Upgrade path in the series: Teams can port work to D1 Ultra (IP54) or heavier D1 variants for harsher environments without changing the conceptual stack.

Comparisons (within the D1 series)

• D1 EDU vs. D1 Pro: Pro prioritizes mass-market accessibility and show agility; EDU adds SDK access and education-oriented packaging/licensing. Both share the same RL-based mobility profile.

• D1 EDU vs. D1 Ultra: Ultra documents IP54 sealing and industrial finishing with ~3.5 m/s speed and ~1 hour runtime; EDU focuses on lab/campus use where ruggedization is secondary to software openness and cost.

Pricing and Availability

AgiBot’s D1 Pro/EDU launched on JD.com with indicative pricing reported at CNY 13,000 (Pro) and CNY 36,000 (EDU), with EDU often shown as build-to-order (≈60-day ship). Regional resellers list EDU packages in USD with education-market positioning; exact prices fluctuate by territory, sensor bundle, compute, and service terms. Institutions should request a formal quotation for current lead time and inclusions.

FAQ

What is AgiBot D1 EDU?
A quadruped robot tailored for education and research, providing an SDK-forward package on top of the D1 family’s RL-based locomotion and modular sensing.

How does D1 EDU work?
It fuses reinforcement-learning gait control with onboard compute and RGB/depth/3D LiDAR options, enabling real-time perception, mapping, and obstacle avoidance for lab exercises.

Why is D1 EDU important?
It brings high-agility legged robotics into a budget and tooling range suitable for universities and STEM programs, accelerating hands-on embodied-AI education.

What are the key specifications?
Family-level numbers include up to ~3.5–3.7 m/s speed, ~16 cm stairs, ~30° slopes, ~1–2 h endurance, and ~8 kg payload capacity in EDU listings (verify per kit).

Does D1 EDU support ROS/ROS 2?
AgiBot markets the EDU version with SDK access suitable for ROS-ecosystem labs; check your reseller’s bundle notes for specific middleware and examples.

Summary

The AgiBot D1 EDU is the D1 family’s academic workhorse: an SDK-centric, RL-powered quadruped engineered to help students and researchers explore locomotion control, perception, and autonomous navigation on real hardware. With high agility, configurable sensing, and an education-minded toolchain, it provides a practical path from intro courses to applied research, and an upgrade route to more rugged D1 variants when projects demand it.
