Cobham BGAN Explorer 325 (403721A-00520)

C$8,585.10
Based on a USD price of $6,389.92 and today's exchange rate.
Overview

Choose EXPLORER 325 BGAN Terminal for cost-effective vehicular internet connectivity, video streaming, voice communication, email and even VPN access.

BRAND:
COBHAM
MODEL:
EXPLORER 325
PART #:
403721A-00520
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 2-3 BUSINESS DAYS
Product Code:
Thrane-BGAN-Explorer-325
+
-

Cobham BGAN Explorer 325
Compact voice and broadband solution for vehicles

With EXPLORER 325 BGAN terminal you are able to connect to the world via voice or data over Inmarsat BGAN instantly, even when your vehicle is moving.

Communicating on-the-move ensures your ability to get the job done and with EXPLORER 325, you are never out of touch, even if you're travelling at up to 200km/h.

Fast Connection
It enables BGAN data speeds up to 384kbps standard IP and up to 128kbps streaming, and operation down to 5° elevation even when moving at speed across rough ground.

Benefit from a fast connection and the confidence that it won't be interrupted when traveling through harsh environments.

Easy to Deploy
EXPLORER 325 is so easy to deploy - just place the antenna on the roof of your vehicle, connect it and your PC to the terminal and you have a mobile communication hub.

You can virtually be in your office in no time at all. Access VPN, catch up on email, browse the web; with fixed pricing and no roaming fees when you cross borders.

Compact Form
At 35cm in diameter, 12cm high and weighing just 3.6kg, EXPLORER 325 has the smallest available vehicular BGAN antenna on the market.

The compact size and price-point of EXPLORER 325 opens up new applications for on-the-move communication, including trains and trucks.

Dimensions (H/W/D) Transciever: 41x231x278mm
Antenna: 120/?350mm
Weight Transciever: 2.4 kg/Antenna: 4.4 kg
Standard IP up to 384 kbps
Streaming IP up to 128 kbps
Standard voice 4 kbps
Premium voice 3,1 kHz audio, 64 kbps (@elevation >45?)
More Information
PRODUCT TYPE SATELLITE INTERNET
USE TYPE VEHICULAR
BRAND COBHAM
MODEL EXPLORER 325
PART # 403721A-00520
NETWORK INMARSAT
USAGE AREA GLOBAL (EXCEPT POLAR REGIONS)
SERVICE INMARSAT BGAN
STANDARD IP UP TO 448 / 464 kbps (SEND / RECEIVE)
STREAMING IP 32 kbps, 64 kbps, 128 kbps
INGRESS PROTECTION IP 31 (TERMINAL), IP 56 (ANTENNA)
OTHER DATA INTERFACES 2X ETHERNET
OPERATING TEMPERATURE -25°C to 55°C (-13°F to 131°F)

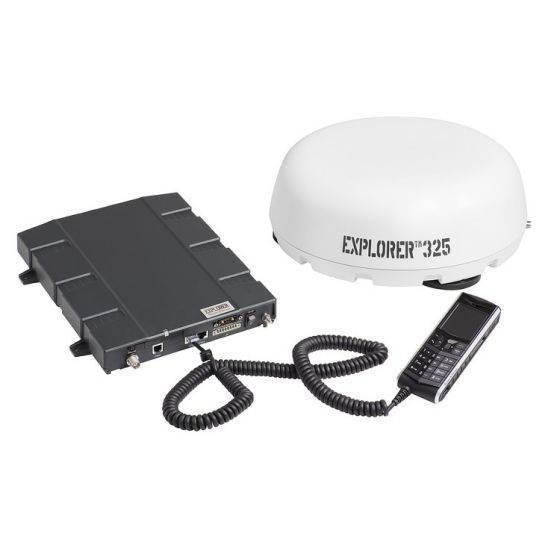

Included in system
1. Fully Integrated Auto-Tracking Antenna
- Color: White
- Built-in magnetic mounts for antenna mounting

2. EXPLORER Land Vehicular Transceiver.
- Standard Ethernet Cable (2m/6.6ft)
- Getting started kit - Quick Start Guide, CD with manuals
- 12/24VDC Input Cable
- Antenna Cable, Coax w/ TNC connector (2.7m/8.8ft)

3. Thrane IP handset wired with Cradle and Coiled Cable.
Specific for the 403721A-00520 variant:
- GNSS: Only GPS - no Glonass, Beidou or Galileo support
- Alphasat: Works in EMEA but do not support the extended L-band frequencies under Alphasat

Inmarsat BGAN Coverage Map


Inmarsat BGAN Coverage Map

This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
