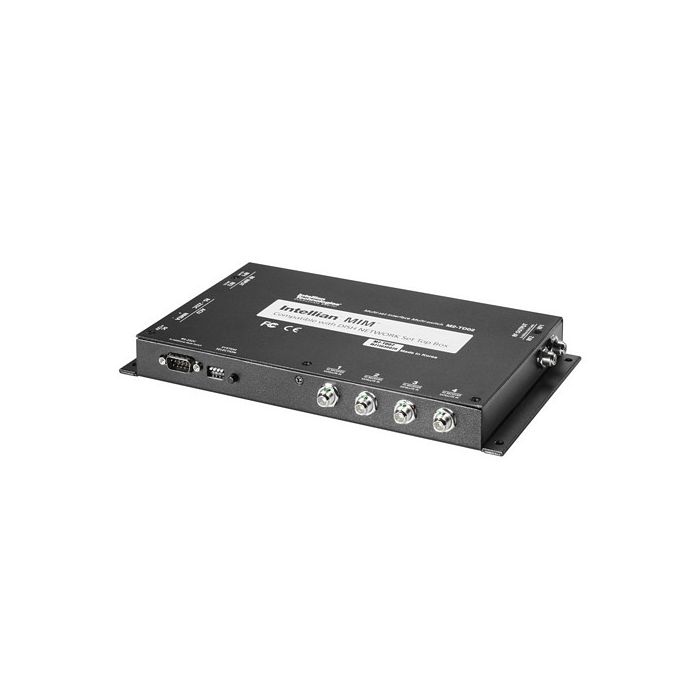

Intellian DISH Network / Bell TV Multi-Satellite Interface Multi-Switch (MIM)
The Intellian’s Multi-sat Interface Module (MIM) utilizes a leading-edge technology which replaces the Dish Network DP-34 multi-switch. The user oriented design of the MIM offers Dish Network subscribers access to their favorite high-definition (HD) programming and switches automatically between Dish Network 110°W, 119°W, and 129°W satellites or alternatively between satellites 61.5°W,110°W, and 119°W. If you are in certain areas of the east coast or south Texas, you may not be able to view HD programming from the 129° satellite based on your geographical location. Therefore, instead of selecting the 129° satellite, you can select the 61.5° satellite which carries the same programs as the 129° satellite.
Intellian recommends using a Dish Network model ViP211 HDTV receiver for automatic satellite switching. The MIM module has four receiver connector ports. Intellian’s MIM allows you to select which receiver connected to the MIM will be the “Master” receiver. The “Master” receiver will control which satellite the antenna is focused on. You can simply choose your desired channels by using the receiver’s remote control through the Master receiver, and the Intellian i-series will automatically switch to the appropriate satellite.
If you need more than 4 receivers, you will be required to link MIM's as shown in the INTELLIAN MIM MANUAL. Please note that each MIM has 4 ports.
|PRODUCT TYPE||SATELLITE TV|
|NETWORK||BELL TV, DISH NETWORK|
Fully Automated System
Automatic Satellite Search and Identification Function
2-axis Stabilization provides high speed tracking
High Performance Antenna
33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
Circular or linear polarization depending on region and LNB selected
Built-in HD module for Ku-band HD TV reception
iQ² Quick&Quiet℠ Technology
iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal tracking while eliminating intrusive background noise experienced with conventional antennas
Antenna Control Unit
Intuitive controls and digital satellite information display on the ACU
Automated updates and diagnostics via Aptus
Simple antenna status quick reference
Multiple Receiver Capability
Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
Using the MIM, a master receiver can be selected to control the target satellite
In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home
Interface to External NMEA 0183 GPS Interface
Standard NMEA Interface allowing a vessel owner to use a separate GPS system further reducing initial search time
37cm (14.6 inch) antenna radome diameter
Very light antenna weighs less than 4.5 kg (10 pounds)
Three Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017.
