Intellian i4 US Marine Satellite TV System with 45cm (17.7 inch) Reflector & All-Americas LNB (B4-409AA)

Intellian i4 US Marine Satellite TV System with 45cm (17.7 inch) Reflector & All-Americas LNB (B4-409AA) 1 4 5 1
Regular Price: C$6,337.05 Sale Price: C$4,852.33
Based on a USD price of $3,595.00 and today's exchange rate.
Overview

You will never have to compromise on reception or quality. The i4 offers the highest signal strength available with a 45cm (17.7”) reflector, significantly increasing the coverage area. Expand your horizon with the Intellian i4.

BRAND:
INTELLIAN
MODEL:
i4
PART #:
B4-409AA
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i4-System-B3-401S

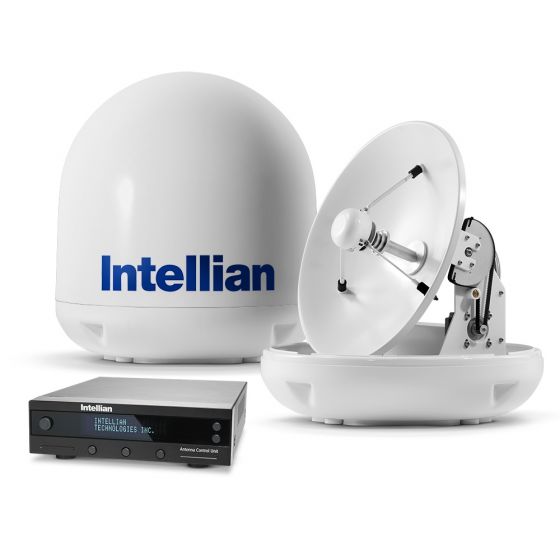

Intellian i4 Marine Satellite TV System (B4-409AA)
With its rugged, reliable and durable design, the Intellian i4 and i4P provide the most outstanding performance to stay locked on signal. The easy installation and user friendly ACU connects boaters to premium satellite TV entertainment while at anchor, cruising at high speed or in rough sea conditions. The i4/i4P's stylish and polished dome design makes it perfect for vessels over 50 feet.

With its exclusive engineering innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, the i4/i4P can achieve the most precise tracking performance and highest signal reception without the need of a fragile or superfluous motion sensor. An embedded GPS system can speed up satellite search and acquisition time.

The revolutionary and innovative design features of the i4/i4P include the built-in HD and TriSat modules built-in to the Antenna Control Unit (ACU) as well as the pre-programmed global satellite library. This offers boaters High Definition (HD) satellite TV broadcasts from leading satellite TV service providers without any extra conversion tools and cable wiring. With Intellian's exclusive MIM, boaters can enjoy changing channels using the remote to automatically switch from onwe program to another, just like a home system. See the installation guide for the DISH Network MIM for further details.

For easy and flexible installation and operation, the i4/i4P supports standard Dual and Quad IRD connections with a single cable between the antenna and the antenna control unit (ACU). This simple and powerful system is manufactured in compliance with the most rigorous quality verification of ISO 9001:2001.

In addition, the i4P model provides the embedded Auto Skew Angle Control system to maintain optimal signal strength and increase the quality of satellite receptions in weak satellite signal coverage areas.

Popular size with higher performance
45cm reflector diameter with nationwide coverage for North America, Europe and the regional service around the globe.

Faster signal acquisition
Intellian’s exclusive Wide Range Search (WRS) algorithm allows the antenna to search, find and lock on to a signal with incredible speed and accuracy.

Simple & Easy installation
With a single cable to connect the antenna and the ACU, Intellian i4 /i4P systems are quick and easy to install. Our advanced ACU is designed to require minimum setup so you can begin to enjoy TV programs aboard your boat in no time.

Wireless connectivity & Aptus mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.

Tune in your favorite HDTV channels
Intellian’s i4/i4P provides HD channels from the Ku- band. The HD module is built-in to the Antenna Control Unit of the Intellian i4/i4P for seamless integration and easy installation.

Built-in GPS
The Intellian i4/i4P includes a built-in GPS for easier operation and faster signal acquisition. It allows the i4/i4P to have higher accuracy and easy operation wherever the vessel sails.

User-friendly operation
Antenna Control Unit (ACU), which is supplied as a default package, gives you the user-friendly operation for various function.

Intellian i4 System Diagram

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARINE
BRANDINTELLIAN
MODELi4
PART #B4-409AA
NETWORKBELL TV, DIRECTV, DISH NETWORK
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE45 cm (17.7 inch)
WEIGHT11.6 kg (25.5 lbs)
BANDKu BAND
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME HEIGHT54 cm (21.2 inch)
RADOME DIAMETER50 cm (19.7 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
VESSEL SIZE35 - 60 FEET
CERTIFICATIONSCE COMPLIANCE, FCC
POLARIZATIONRHCP / LHCP, VERTICAL / HORIZONTAL
AZIMUTH RANGE680º
ELEVATION RANGE0° ~ 90°
SHIP'S MOTIONRoll ±25º, Pitch ±15º
MINIMUM EIRP48 dBW
ROLL & PITCH RESPONSE RATE50º / sec
TURNING RATE50º / sec
RF OUTPUTDUAL / QUAD OUTPUT

Intellian i4 System Features


Fully Automated System
  • Automatic Satellite Search and Identification Function
  • 2-axis Stabilization provides high speed tracking

High Performance Antenna

  • 45 cm (17.7 in) diameter parabolic antenna for receiving the Ku-band satellite signals
  • Circular or linear polarization depending on region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

Intellian’s Patented Quick&Quiet℠ Technology (iQ²)

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit

  • Intuitive controls with a digital information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module

Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home

Built-in GPS and NMEA 0183 Interface

  • The i3 includes a built-in GPS inside the Antenna Unit for faster signal acquisition
  • The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

 Stylish Radome Profile Size

  • 50cm (19.7 inch) antenna radome diameter
  • Antenna weighs less than 11.6 kg (25.5 pounds)

Three Year Global Warranty

  • Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment

Whats Included


All Satellite Systems include the following parts as standard
- Antenna & Radome 45 cm (18 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Installation Template
- Quick Installation Guide

Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws

Intellian i4 Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map

Intellian Sky Brazil Coverage Map
