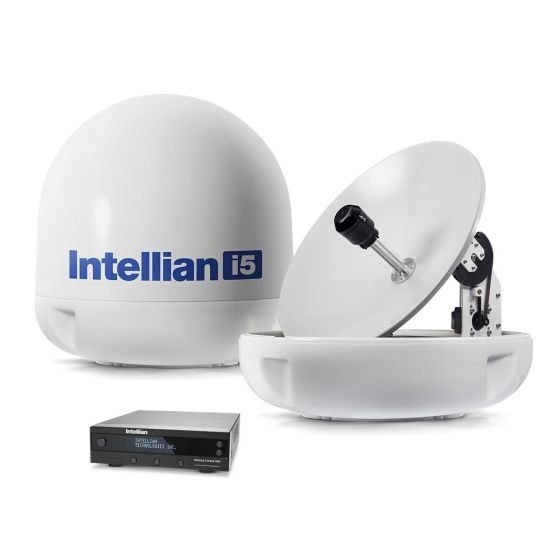

Intellian i5 Marine Satellite TV System with 53cm (20.8 inch) Reflector & All-Americas LNB (B4-509AA)

Regular Price: C$7,294.89 Sale Price: C$5,942.73
Based on a USD price of $4,395.00 and today's exchange rate.
Overview

A New Size Category, the Intellian i5 53.5cm (21 inch) Satellite TV system is the world's first marine satellite antenna system purpose built for offshore cruising vessels 12m (35ft) to 18m (60ft) in length.

BRAND:
INTELLIAN
MODEL:
i5
PART #:
B4-509AA
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i5-System-B4-509AA

Intellian i5 Marine Satellite TV System (B4-509AA)
Cruising vessels in the 40-60ft size class have always faced a dilemma between function and form. Standard 45cm (18") antennas fit the aesthetic of the vessel well, but are not powerful enough to provide coverage that matches the vessel's own cruising range. Until now the only alternative has been to step up in size significantly to the 60cm (24") option. While this certainly provides the coverage needed to receive signal in offshore destinations, such as the Bahamas and Caribbean, a system that large is simply not an option for most vessels.

The i5 fills this gap, providing the performance needed for offshore cruisers in a form factor that matches the lines of the vessel.

In the age of mobile devices, it is nice to have an app for everything. Intellian pioneered this in the world of marine satellite antennas with Aptus, our Mobile and PC remote antenna control software. All Intellian ACUs have built in Wi-Fi allowing users to manage and control all aspects of our systems from the palm of their hand. Aptus features auto diagnostics, instant firmware upgrades and a host of other features designed to make operation of our antennas quick and easy.

Just the Right Fit
The i5 is the world’s first 21” satellite TV designed for cruising vessels who require exceptional TV service throughout the US, Bahamas, Caribbean, and Mexico. The antenna is purpose built to provide just the right fit for vessels 40 to 60 feet.

Quicker & Quieter
Intellian’s patented iQ2technology delivers the best user experience available on the market today. An advanced signal searching algorithm acquires the satellite 4-5 times faster than conventional methods. Intelligent, real time beam analysis holds the signal and reduces overall motor movement by up to 80%, eliminating annoying background noise while at anchor or in the slip.

Simple & Easy Installation
With a single cable to connect the antenna and the ACU, the i5 system is quick and easy to install. Our intuitive ACU features a front panel display with functional keys and requires minimal setup so you can begin to enjoy TV programs in no time.

Wireless Control via Aptus
Built-in Wi-Fi enables the ACU to be wirelessly managed and controlled via Aptus PC or Mobile, Intellian’s graphical antenna control software. Aptus user-friendly displays vital performance metrics in a graphical format that simplifies operation. It even includes an auto diagnostic function designed to help solve problems quickly should they arise. The Aptus Mobile application is available in the Apple Store and through Google Play.

Standard All Americas LNB
The i5 is built to cruise offshore throughout the Americas. For this reason it comes standard with Intellian’s own All America’s LNB, meaning users will not have to swap LNBs when sailing between regions.

Built-in GPS
The i5 includes a built-in GPS, which facilitates an easier installation by eliminating the need to integrate with the vessel’s system. Additionally, the GPS enables faster signal acquisition and improves overall tracking performance.

Simple Network Update Process
Easily respond to satellite TV service network changes that may cause outages. Aptus Mobile automatically checks for these updates, enabling users to stay current with any changes through a simple mobile app process.

Tune in your favorite HDTV channels
Intellian’s i5 recieves HD channels from any Ku- band TV service. Enjoy HD programming whether cruising in the US, Mexico or the Caribbean.

Intellian i5 System Diagram

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARINE
BRANDINTELLIAN
MODELi5
PART #B4-509AA
NETWORKBELL TV, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE53.5 cm (21 inch)
WEIGHT17.3 kg (38 lbs)
BANDKu BAND
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME HEIGHT63 cm (25 inch)
RADOME DIAMETER61 cm (24 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
VESSEL SIZE35 - 60 FEET
POLARIZATIONRHCP / LHCP
AZIMUTH RANGE680º
ELEVATION RANGE0° to 90°
SHIP'S MOTIONRoll ±25º, Pitch ±15º
MINIMUM EIRP47dBW
ROLL & PITCH RESPONSE RATE50º / sec
TURNING RATE50º / sec
RF OUTPUTDUAL OUTPUT

Whats Included


All Satellite Systems include the following parts as standard
- Antenna & Radome 53.5 cm (21 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Installation Template
- Quick Installation Guide

Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws

Intellian i5 Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map

Intellian Sky Brazil Coverage Map
