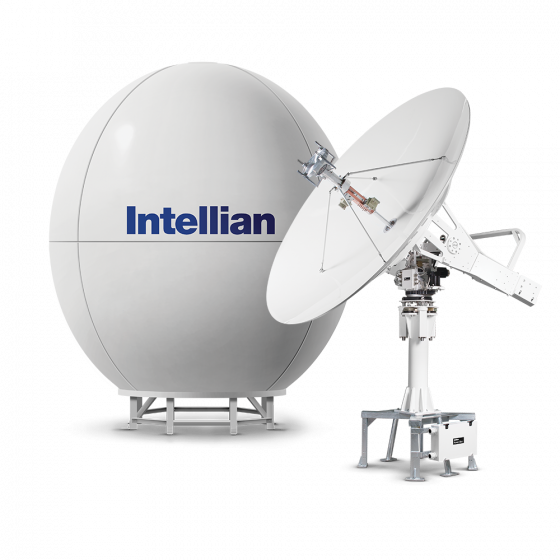

Intellian t240CK 3-axis, 2.4m C-band and Ku-band Marine Satellite TV Antenna System

C$86,364.78
Based on a USD price of $63,771.00 and today's exchange rate.
Overview

With a 2.4m (97 inch) reflector, the t240CK is a simultaneous C-band and Ku-band solution, designed for large vessels such as cruise ships, super yachts and commercial vessels that travel all the seven seas

BRAND:
INTELLIAN
MODEL:
t240CK
WARRANTY:
3 YEARS PARTS + 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-t240CK-TV-System

Intellian t240CK 3-axis Global Marine Satellite TV System
The t240CK is the world’s first antenna capable of receiving both HD and SD satellite TV services on C-band and Ku-band simultaneously from the same satellite. Intellian’s multi-band and multi-polarization WorldView LNB enables users to seamlessly tune in to any satellite TV service around the globe by simply pushing a button each time the vessel crosses into a different satellite service region.

Fiber Ready
The Intellian FiberLink module connects the antenna to the below deck units with a single, lossless fiber optic cable, which can be run up to 2000 M, greatly simplifying shipboard installation. With multiple RF outputs from the below deck multi-switch, both C- and Ku-Band receivers can be connected, providing a seamless user experience to onboard guests and crew.

Remote Management Solution
The t240CK can be accessed, monitored and controlled from any location in the world by accessing the ACU’s built-in Aptus Web software, enabling integrators to execute routine maintenance activities as a managed service. These functions include firmware upgrades, monitoring tracking parameters, logging performance data, and system diagnostics and more.


More Information
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz, C-band: 3.4 ~ 4.2 GHz
MINIMUM EIRPC-band: 31 dBW, Ku-band: 35 dBW
PRODUCT TYPESATELLITE TV
USE TYPEMARINE
BRANDINTELLIAN
MODELt240CK
NETWORKDIRECTV, DISH NETWORK
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE240 cm (94 inch)
WEIGHT630 kg (1389 lbs) Excl. A/C
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
BANDKu BAND, C BAND
RADOME HEIGHT353.0 cm (139 inch)
RADOME DIAMETER330 cm (130 inch)
STORAGE TEMPERATURE-30°C ~ 70°C (-22°F ~ 158°F )
