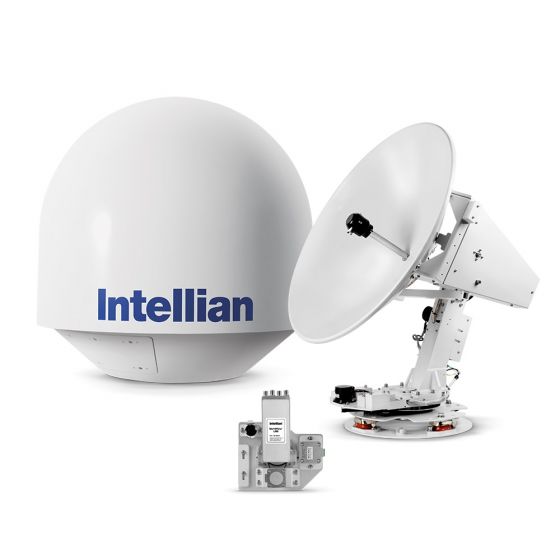

DISCONTINUED - Intellian t80Q 3-axis Global Marine Satellite TV System w/ 85cm (33.5") Reflector & Universal Quad LNB (T3-91AQ)

Overview

Optimized for European Market - Intellian provides just right solution for European customer’s purpose. It’s simple, easy, reliable and affordable. For vessels that may require global TV coverage in the future, a conversion kit is also available for WorldView LNB Model.

BRAND:
INTELLIAN
MODEL:
t80Q
PART #:
T3-91AQ
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
Out of stock
AVAILABILITY:
DISCONTINUED
Product Code:
Intellian-t80Q-System-T3-91AQ

Intellian t80Q 3-axis Global Marine Satellite TV System w/ 85cm (33.5") Dish & WorldView LNB (T3-91AQ)
Optimized for European Market
Intellian provides just right solution for European customer’s purpose. It’s simple, easy, reliable and affordable. For vessels that may require global TV coverage in the future, a conversion kit is also available for WorldView LNB Model.

DVB / DVB-S2 Signal Reception
The fully stabilized, 3-axis t80Q is an 85cm satellite TV antenna system that is exclusively designed to support viewing all Standard Definition (SD) and HD programming broadcast through both DVB and the latest DVB-S2 satellite TV service standards.

Dedicated Management Ethernet Port
The Management Ethernet Port on the front of ACU enables direct and simple network connection between a PC and the ACU. The Management Port supports DHCP network connection by default, allowing automatic IP configurations and quick access to Intellian’s remote management solution, Aptus Web.

Global Satellite Library
The t80Q includes the pre-programmed global satellite library which allows boaters to select the desired satellite while travelling from region to region. Moving from one region to another is as simple as a few button taps on your Smart phone or Tablet.

Rugged Construction
Built with Intellian’s extremely high vibration and shock standards, the t80Q’s simplified yet sophisticated mechanical design is capable of withstanding the most severe marine environment and is guaranteed to track and lock onto the satellite signal instantly in all weather conditions.

Wireless Connectivity
The built-in Wi-Fi enables the ACU to be wirelessly connected and can be either turned on and off by a switch. Any kind of wireless devices such as PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly.

Intellian t80Q System Diagram

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELt80Q
PART #T3-91AQ
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE85 cm (33.5 inch)
WEIGHT82,2 kg (181,2 livres)
FREQUENCYKu BAND
ACCESSORY TYPEANTENNA
RADOME HEIGHT114 cm (44.9 inch)
RADOME DIAMETER113 cm (44.5 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
