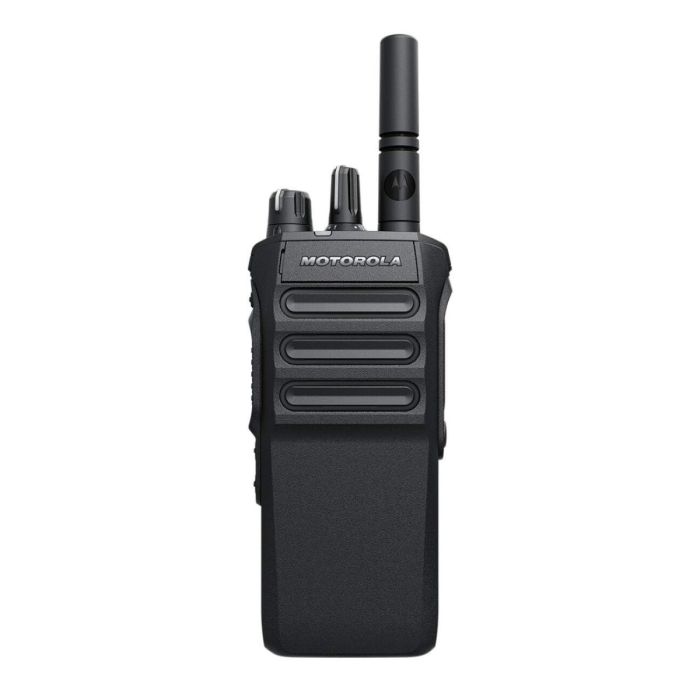

MOTOROLA MOTOTRBO R7 VHF NKP BT WIFI GNSS PREMIUM PRA302CEG (MDH06JDC9XA2AN)

MOTOROLA MOTOTRBO R7 VHF NKP BT WIFI GNSS PREMIUM PRA302CEG (MDH06JDC9XA2AN)

The R7 platform is positioned by Motorola as a rugged, connected business radio built around high speech intelligibility, advanced audio processing, and modern wireless management features. Official current datasheets list support for VHF operation, Bluetooth 5.2, Wi-Fi 2.4/5.0 GHz, WPA3 compliance, adaptive dual-microphone noise cancellation, AI-trained noise suppression, Intelligent Audio, and up to 28 hours of battery life, depending on the battery selected.

For organizations evaluating a portable radio for demanding environments, the MDH06JDC9XA2AN variant stands out because it combines the simpler, highly durable non-keypad form factor with the broader feature set associated with the premium R7 family. In practical terms, that makes it suitable for teams that need clear push-to-talk communications, modern wireless connectivity, location services, and strong field durability without relying on a full display-and-keypad workflow.

Introduction / Overview

The Motorola MOTOTRBO R7 series is designed for business and industrial users who need dependable handheld communications in noisy, fast-moving, or safety-sensitive environments. Motorola describes the R7 as a rugged, dependable, and connected device whose advanced audio processing helps ensure communications remain loud and clear even in harsh operating conditions.

Within that lineup, the MDH06JDC9XA2AN is the VHF Premium NKP model. “VHF” indicates operation in the 136–174 MHz range for the R7 VHF platform, while “NKP” means no keypad and no display-driven interface. Motorola’s current datasheets distinguish the full-keypad R7 from the no-keypad R7, with the latter designed for streamlined field use and simplified operation.

This exact model is therefore best suited to fleets that want a premium-grade Motorola portable radio but prefer straightforward controls, less front-panel complexity, and robust construction. That combination is often valuable in operations where radios are used intensively by shift workers, security officers, maintenance technicians, logistics staff, and front-line personnel who need reliable communication more than on-device menu navigation. This deployment interpretation is an inference based on Motorola’s documented hardware format and feature set.

Design and Features

Premium Audio-Centric Design

A defining feature of the MOTOTRBO R7 family is audio performance. Motorola highlights automatic acoustic feedback suppression, adaptive dual-microphone noise cancellation, AI-trained noise suppression, Intelligent Audio, wideband speakers and microphones, and programmable loudness up to 107 phons. These features are intended to improve voice clarity where background noise, reverberation, machinery, vehicle traffic, or crowd noise would otherwise make communication difficult.

Non-Keypad Operational Simplicity

The no-keypad configuration is one of the most important characteristics of this model. Motorola’s datasheets show that the R7 FKP includes a 2.4-inch QVGA display, while the R7 NKP has no display. For many organizations, that design choice is a benefit rather than a limitation, because it reduces distractions, simplifies training, and gives users a radio optimized around core voice communications.

Rugged Build Quality

Motorola specifies the R7 as IP68-rated, including waterproofing up to 2 meters for 2 hours, and IP66-rated for resistance to concentrated water jets. The platform is also described as rugged to MIL-STD 810 and built with a disinfectant- and decontamination-substance-resistant housing. These characteristics make the R7 especially relevant where radios are exposed to rain, washdowns, dust, outdoor use, or frequent cleaning protocols.

Wireless Connectivity

The model name explicitly includes BT WiFi GNSS, and Motorola’s current R7 datasheets confirm support for Bluetooth Core Version 5.2, Wi-Fi 5 / IEEE 802.11a/b/g/n/ac, and GNSS positioning. This modern connectivity helps radios fit into broader enterprise communications environments that may require wireless accessories, over-the-air provisioning, secure Wi-Fi integration, and location-aware workflows.

Technology and Specifications

Frequency Range and Power

For the VHF R7 no-keypad model, Motorola lists the frequency range as 136–174 MHz. High power output is listed at 5 watts for the VHF version, with 1 watt low power output. Channel spacing is listed as 12.5 kHz, 20 kHz, and 25 kHz, reflecting support for a range of professional land-mobile radio channel plans.

Digital and Analog Signaling

Motorola states that the R7 supports digital and analog signaling, making it appropriate for fleets transitioning from legacy analogue systems to MOTOTRBO digital networks. That mixed-mode support is important for organizations that need continuity during system upgrades or phased fleet replacements.

Battery Life and Physical Size

Motorola publishes several battery configurations for the R7 family. For the VHF NKP model with the 2200 mAh slim IMPRES Li-ion battery, battery life is listed at approximately 20 hours digital / 15 hours analog, with dimensions of 131.8 x 56 x 31.3 mm and weight of 289 g. Motorola’s broader R7 materials also state that the platform can deliver up to 28 hours of battery life depending on battery type and configuration.

GNSS and Location Services

For GNSS, Motorola lists support for GPS, GLONASS, BeiDou, and Galileo. The current LACR datasheet specifies cold-start time to first fix of 60 seconds or less, hot-start time of 10 seconds or less, and horizontal accuracy under 5 meters. These specifications make the radio relevant for dispatch visibility, field-team coordination, incident response, and workforce location applications.

Wi-Fi Specifications

Motorola lists 2.4 GHz and 5 GHz Wi-Fi, support for Wi-Fi 5 / IEEE 802.11a/b/g/n/ac, and security protocol support for WPA3 and WPA2, along with IEEE 802.11k/v/r roaming protocols in the LACR datasheet. These features matter most in managed enterprise deployments where radios may receive updates, provisioning, or secure network access over Wi-Fi.

Applications and Use Cases

The MOTOTRBO R7 VHF NKP BT WiFi GNSS Premium is well suited to sectors that need rugged VHF handheld communications with strong audio performance and integrated wireless features.

Utilities and Field Service

VHF radios are often favored in wider-area outdoor operations, and the R7’s combination of 5W VHF power, GNSS support, rugged sealing, and strong audio makes it a strong fit for utilities, municipal crews, and mobile field service teams. This fit is an inference based on the published VHF band, durability, and location features.

Construction and Infrastructure Maintenance

Construction sites and infrastructure maintenance teams often work in loud environments with wind, machinery, and changing weather conditions. The R7’s noise suppression, high loudness, and IP66/IP68 ruggedization are directly aligned with these conditions.

Security and Campus Operations

Security teams, event staff, schools, campuses, and industrial facilities can benefit from the radio’s simple NKP format, Bluetooth accessory support, and GNSS capability. These features help maintain reliable team communications while limiting interface complexity for users who need quick, consistent operation.

Transportation and Logistics

Motorola’s emphasis on durability, audio intelligibility, and connected features also makes the R7 appropriate for transportation, yard management, and logistics operations. This is especially true where staff move between indoor and outdoor environments and require a radio that remains usable in vehicle yards, depots, and loading areas. This is an inference from the platform’s published feature set.

Advantages / Benefits

Clearer Communications in Noise

The strongest benefit of the R7 family is its focus on voice clarity under real-world conditions. Motorola’s published audio features indicate that this radio is engineered not merely to be loud, but to help speech remain intelligible amid noise and acoustic feedback.

Durable for Harsh Environments

With IP66/IP68 ratings, MIL-STD 810 ruggedness, and chemical-resistant housing, the R7 is built for heavy-duty daily use. This reduces the risk of premature device failure in wet, dusty, or high-contact environments.

Modern Enterprise Readiness

Support for Bluetooth 5.2, dual-band Wi-Fi, and multi-constellation GNSS gives the radio broader long-term usefulness than older voice-only portables. For fleet operators, these features can simplify accessory integration, provisioning, and asset visibility.

Simpler Daily Use

Because this model is NKP, it is especially appealing for organizations that want a premium Motorola portable with fewer interface distractions. That can improve ease of use and reduce training burden for large field teams.

FAQ Section

What is the MOTOROLA MOTOTRBO R7 VHF NKP BT WiFi GNSS Premium PRA302CEG?

It is a VHF professional digital portable two-way radio in Motorola’s MOTOTRBO R7 family. The exact model MDH06JDC9XA2AN is identified in Motorola documentation as an R7 no-keypad Premium version with Bluetooth, Wi-Fi, and GNSS.

How does the MOTOTRBO R7 VHF NKP Premium work?

It operates as a portable push-to-talk radio for professional voice communications over the 136–174 MHz VHF band. It supports digital and analog signaling, while built-in Bluetooth, Wi-Fi, and GNSS extend its use for accessories, network connectivity, and location-aware workflows.

Why is the MOTOTRBO R7 important?

It is important because it combines high-end audio processing, rugged field durability, and modern wireless features in a professional handheld radio platform. Motorola specifically emphasizes noise suppression, Intelligent Audio, Wi-Fi, Bluetooth, GNSS, and strong ingress protection.

What are the benefits of the MOTOTRBO R7 VHF NKP Premium?

Its main benefits are clear audio in noisy environments, rugged IP66/IP68 construction, long battery life, Bluetooth and Wi-Fi connectivity, GNSS support, and a simplified non-keypad design for fast daily use.

Does the MOTOTRBO R7 VHF NKP model have a screen?

No. Motorola’s datasheets show that the no-keypad R7 does not include the 2.4-inch QVGA display found on the full-keypad version.

What frequency does the MDH06JDC9XA2AN use?

The VHF R7 platform operates in the 136–174 MHz range.

Summary

The MOTOROLA MOTOTRBO R7 VHF NKP BT WiFi GNSS Premium PRA302CEG (MDH06JDC9XA2AN) is a premium-grade VHF Motorola business radio designed for organizations that need rugged construction, strong voice intelligibility, wireless connectivity, and GNSS capability in a simplified no-keypad format. For utilities, security, field service, construction, and other professional environments, it represents a modern MOTOTRBO handheld optimized for reliability, clarity, and long-term fleet value.
