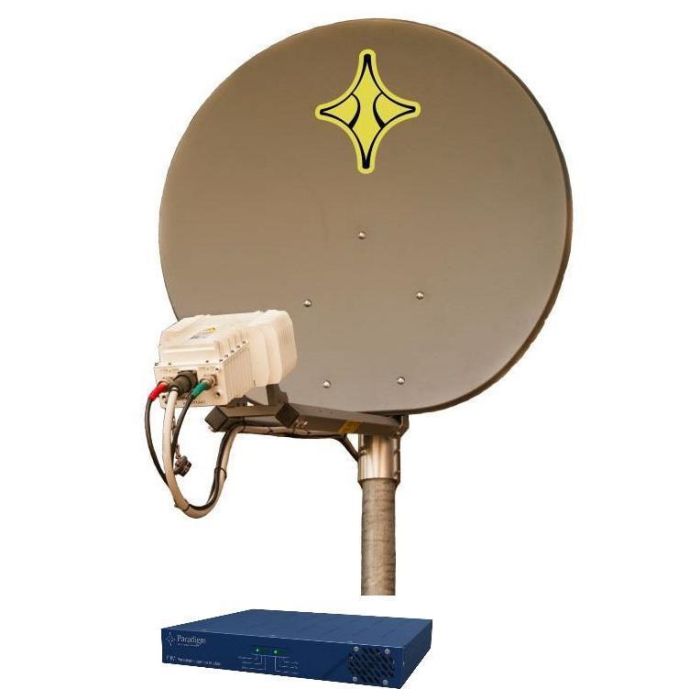

Paradigm Connect 100
The Connect100 terminal is a medium-sized fixed Global Xpress Certified Solution. Combining both optimal performance and functionality, the Connect100 provides access to the most advanced IP satellite services. The terminal is designed to provide the best possible performance on the Global Xpress network and meets the GX sweet spot for price and performance.
Designed for extended usage in demanding environments, the Connect100 offers a variety of features to achieve the required accuracy needed for GX performance, including the One Touch Commissioning function to enable simple RF-chain setup.
Paradigm offers the Connect100 as a standard terminal, with relevant accessories. Installation manuals and a quick start guide are also supplied on CDROM. For ease of setup, a tool kit with compass is provided. Supplied with either a Kingpost, Wall Mount, Non-Penetrating Roof Mount, Tripod or Paradigm ISO Container Mount, the antenna system can be deployed/installed in any location.
Terminal M&C and modem operations are performed by the Indoor Paradigm Interface Module (PIM), which can optionally be supplied as a Rack Mount unit. For scenarios where the modem is required to operate outside, Paradigm offers an Outdoor PIM option.
To increase flexibility and adaptability, Paradigm offers alternative interface options to the standard 10/100BaseT, including fibre and wireless solutions. Cable options to suit specific installation environments can also be offered.
|PRODUCT TYPE||SATELLITE INTERNET|
|USAGE AREA||GLOBAL (EXCEPT POLAR REGIONS)|
|ANTENNA SIZE||98 cm (38.6 inch)|
|OPERATING TEMPERATURE||-25°C to 55°C (-13°F to 131°F)|
|INGRESS PROTECTION||IP 52 (TRANSCEIVER), IP 65|
|BAND||Ka BAND, Ku BAND, X BAND|
• 98cm Reflector
• Backing Structure & Boom
• 5W Transceiver & Feed
• Indoor PIM
• 30m Cable Set*
• Basic Assembly Tool Kit
• Installation CD
