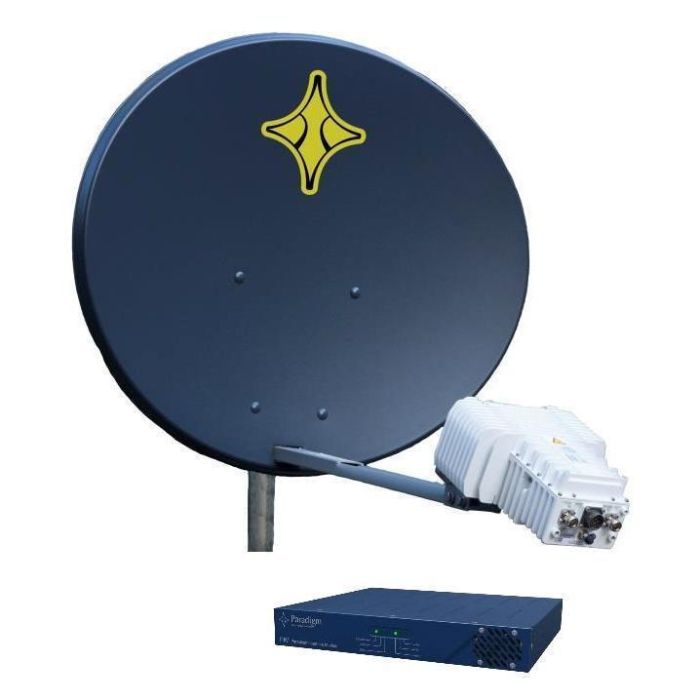

Paradigm Connect 70
The Connect70 is the smallest fixed Global Xpress Certified Solution. Combining both optimal performance and functionality, the Connect70 provides access to the most advanced IP satellite services. The terminal is designed to provide the best possible performance on the Global Xpress network.
Designed for extended usage in demanding environments, the Connect70 offers a variety of features to achieve the required accuracy needed for GX performance. Paradigm offers the Connect70 as a standard terminal, with relevant accessories. Installation manuals and a quick start guide are also supplied on CD-ROM. For ease of setup, a Pointing Aid is provided.
Supplied with either a Kingpost, Wall Mount, NonPenetrating-Roof-Mount or Paradigm ISO Container Mount, the Antenna System can be deployed/installed in any location.
The Indoor PIM can optionally be supplied as a Rack Mount unit. For scenarios where the modem is required to operate outside, Paradigm offers an outdoor PIM option.
To increase flexibility and adaptability, Paradigm offers alternative interface options to the standard 10/100BaseT, including fibre and wireless solutions. Cable options to suit specific installation environments can be also offered.
|PRODUCT TYPE||SATELLITE INTERNET|
|USAGE AREA||GLOBAL (EXCEPT POLAR REGIONS)|
|ANTENNA SIZE||69 cm (27.2 inch)|
|BAND||Ka BAND, Ku BAND, X BAND|
|INGRESS PROTECTION||IP 52 (TRANSCEIVER), IP 65|
|OPERATING TEMPERATURE||-25°C to 55°C (-13°F to 131°F)|
- 69cm Reflector
- Backing Structure & Boom
- 5W Transceiver & Feed
- Indoor PIM
- 30m Cable Set*
- Basic Assembly Tool Kit
- Installation CD
