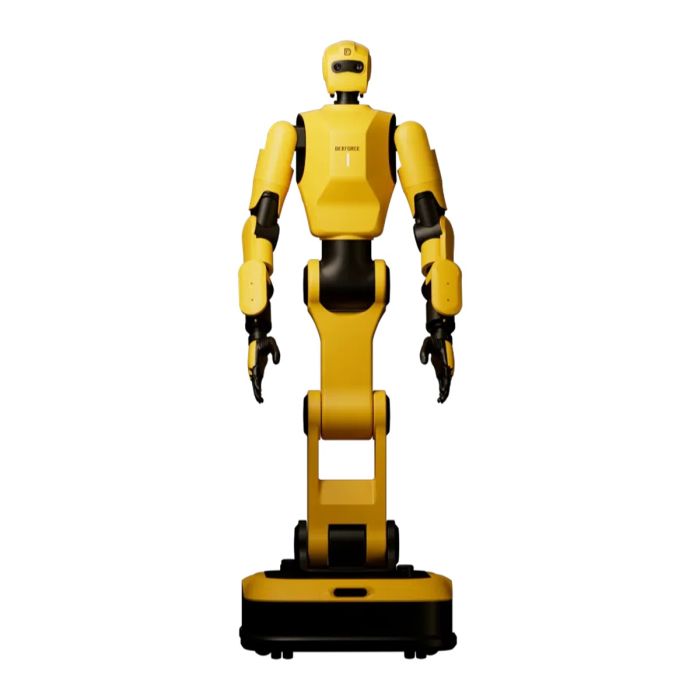

Dexforce W1 Core General Purpose Embodied Intelligence Wheeled Humanoid Robot

W1 Core General Purpose Embodied Intelligence Wheeled Humanoid Robot (W1 Core)

Public descriptions position W1 Core as a general-purpose embodied intelligence robot intended for repetitive, long-duration tasks such as inspection, assembly, logistics handling, and research/education, with development grounded in a Sim2Real workflow for faster training and deployment.

DexForce (跨维智能 / DexForce) presents the broader W1 line as a platform built around pure-vision perception, high-frequency joint control, and a simulation engine (often described as EmbodiChain / Sim2Real VLA) designed to generate training data and improve real-world robustness.

Design and Features

Upper-body “Core” configuration

DexForce’s published materials describe W1 Core as retaining the modules above the legs/base—including dual arms, torso, and head/perception stack—targeting stationary or fixed-position applications where mobility is less important than manipulation capability. In a public product note, DexForce contrasts this with W1 Pro, stating that the key difference between Pro and Core is the chassis/base configuration, while the perception, execution, control core, and software platform above the lower body are described as consistent across both.

Wheeled humanoid platform family (W1 and W1 Pro)

Within the broader W1 family, the Pro variant is described as a wheeled humanoid with a configurable chassis (e.g., differential or omnidirectional), aiming to combine humanoid manipulation with practical factory-floor mobility. DexForce’s official site highlights pure-vision binocular sensors, 1000 Hz real-time joint control, and industrial networking (EtherCAT) as core design elements.

Humanlike manipulation stack: dual 7-DOF arms and dexterous hands

Public reporting on W1 describes 7-DOF humanoid-style arms, with single-arm payload up to 10 kg and repeat positioning accuracy around ±0.5 mm, supporting heavy-load and precise manipulation tasks.
The same reporting describes a 6-DOF dexterous hand option and fine force-control capability (reported as 20 mA-level force-control precision in one public article), reflecting an emphasis on delicate handling and contact-rich tasks.

Technology and Specifications

System-level configuration and control frequency

Multiple public sources describe W1’s motion-control design as reaching ~1000 Hz control frequency, paired with a distributed control architecture and industrial networking. DexForce’s official site also references 1000 Hz real-time joint control and EtherCAT as part of the platform’s “stable control” positioning.

Power units / actuated modules

A widely reported configuration for W1 is 34 powered units (动力单元), presented as enabling high-bandwidth communication between modules and high-frequency whole-body control.

Vision-first perception (“pure vision”)

DexForce emphasizes a self-developed binocular pure-vision sensor and supporting perception algorithms designed to handle challenging lighting (e.g., strong light) and synchronized multi-camera capture. The official site also claims ±1 mm visual recognition/positioning accuracy for its binocular AI algorithm, in the context of the platform’s perception stack.

Published parameters snapshot (public sources)

Because W1 Core is often presented as a configuration within the W1 family, many published parameters appear at the W1/W1 Pro platform level. A public parameter listing for “Dexforce W1” includes:

Applications and Use Cases

Manufacturing and repetitive industrial tasks

Industry listings describe the W1 platform as suited for factory inspection and assembly, emphasizing a wheeled humanoid approach designed for repetitive tasks over long shifts.
For W1 Core specifically, the stationary/upper-body focus can be attractive for bench workcells—for example, component handling, screw-driving workflows (commonly referenced as a dexterous manipulation benchmark), kitting, and fixture interactions—where mobility is handled by conveyors, jigs, or external transport systems. Public reporting explicitly cites high-frequency control and precision as enabling high-dynamic, fine operations.

Logistics and service-style manipulation

With dual arms and humanlike reach/orientation, the W1 family is positioned for handling diverse objects in semi-structured environments. Media coverage describes demonstrations such as picking and placing items under voice command and performing structured service workflows (e.g., preparing coffee capsules in an event scenario), illustrating how perception + dexterity can support service-like tasks.

Research and education in embodied AI

DexForce strongly frames the W1 platform around Sim2Real—using simulation to generate large volumes of labeled data, train policies, and reduce cost/risk before real-world deployment. This orientation aligns with research needs in robot learning, where repeatable data pipelines and rapid iteration are often more valuable than maximizing one-off mechanical performance.

Advantages / Benefits

Practical dexterity in a “humanoid-style” work envelope

A core advantage of the W1 Core concept is delivering a humanoid-like dual-arm work envelope—often useful for human toolchains and environments—without requiring a full bipedal lower body. This can simplify integration into industrial spaces while preserving many manipulation benefits of humanoid kinematics.

High-frequency control and industrial networking

DexForce’s emphasis on 1000 Hz joint control and EtherCAT speaks to stable, responsive control loops, which are especially relevant for contact-rich manipulation and precision assembly tasks.

Vision-first stack designed for deployment variability

By highlighting binocular pure-vision sensing and lighting robustness, DexForce positions the W1 family for environments where sensor simplicity (vision over extensive external instrumentation) and rapid deployment matter.

Sim2Real development pipeline

The Sim2Real narrative—simulation-based task modeling, synthetic data generation, and faster skill transfer—targets one of the main bottlenecks in embodied AI: collecting enough diverse training data safely and economically.

FAQ Section

What is the DexForce W1 Core?

DexForce W1 Core is an embodied-intelligence robot configuration focused on the upper-body manipulation stack (arms, torso, head/perception), designed for fixed-position or workcell deployments while using the same core perception and software platform as the W1 family.

How does the DexForce W1 Core work?

W1 Core combines vision-first perception (binocular pure-vision sensing and algorithms), high-frequency joint control (~1000 Hz), and a Sim2Real-oriented software pipeline to perceive objects, plan actions, and execute dual-arm manipulation in real time.

Why is the DexForce W1 Core important?

It targets a practical middle ground: humanoid-style dexterity and embodied AI development benefits without requiring full bipedal locomotion, making it attractive for industrial workcells, research labs, and education where stable, repeatable manipulation is the priority.

What are the benefits of the DexForce W1 Core?

Reported benefits include high-frequency control, precision repeatability (±0.5 mm reported), a vision-first perception stack, and a Sim2Real development pipeline that can reduce time-to-deployment for new tasks—especially in repetitive manipulation scenarios.

Summary

The DexForce W1 Core is a general-purpose embodied intelligence robot configuration centered on upper-body perception and dual-arm manipulation, positioned for workcell and stationary deployments where mobile navigation is optional. Across public sources, the W1 platform emphasizes pure-vision perception, ~1000 Hz control, and a Sim2Real development pipeline intended to accelerate skill training and real-world rollout—making W1 Core a notable option for industrial pilots, research labs, and education programs seeking humanoid-style manipulation in a practical form factor.
