Iridium AeroAntenna Fixed Mast Antenna - Pipe Mount (AT1621-142)

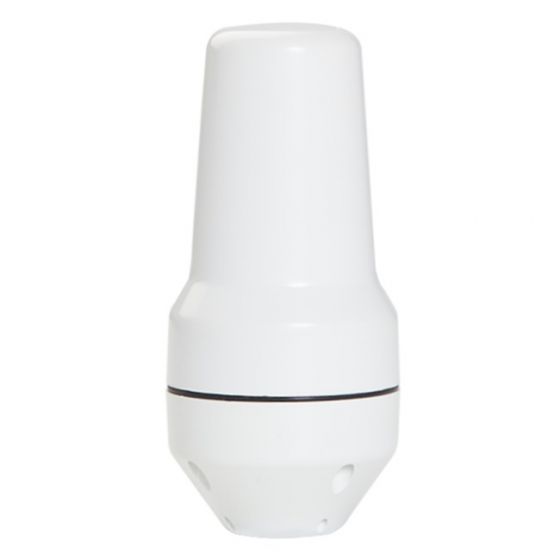

Iridium AeroAntenna AT1621-142 Fixed Mast Antenna - Pipe Mount
The AeroAntenna Fixed Mast Antenna, for use with the Iridium 9500, 9505, 9505A, 9555 & 9575 Extreme satellite phones and the 9570 portable dock, delivers exceptional reception performance for permanent in-building or marine applications. This antenna is designed for free-air operation, no ground plane.
This fixed mast antenna (AT1621-142) is an Iridium-frequency pole-mount antenna designed for fixed base station and maritime applications. It works with all Iridium-based voice and data communications devices.
The AT1621-142 is optimal for applications where long cable runs are required.
The antenna cable connection is inside the antenna and protected from harsh environments.
Specifications
| PART # | AT1621-142 |
|---|---|
| PRODUCT TYPE | SATELLITE PHONE |
| USAGE AREA | 100% GLOBAL |
| BRAND | AEROANTENNA |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM VOICE |
| USE TYPE | FIXED, MARITIME |
| ACCESSORY TYPE | ANTENNA |
| FREQUENCY | L BAND (1-2 GHz) |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505 |
| HARMONIZED TARIFF NUMBER | 85177900 |
