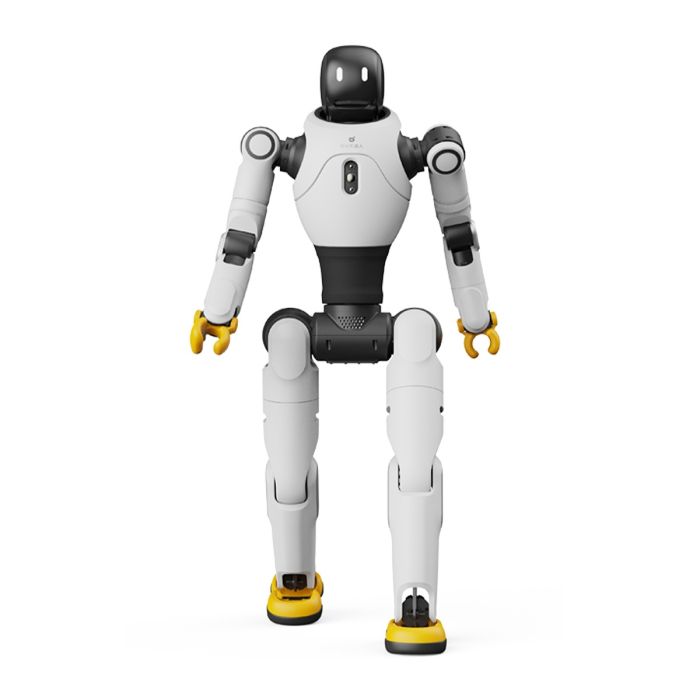

AgiBot X2 Full-Stack Open Source Humanoid Robot

AgiBot X2 Full-Stack Open Source Humanoid Robot

Agibot X2 is a family of compact humanoid robots developed by AgiBot (Shanghai Zhiyuan Innovation Technology Co., Ltd.), a Chinese robotics firm focused on embodied AI and bipedal platforms. Within the X-series lineup, Agibot positions X2 as a half-size, agile humanoid designed for research, education, service interaction, and light-duty tasks where maneuverability and human-compatible motion are important. The company provides an application and integration framework, AimDK_X2, to support secondary development and access to perception, control, and task APIs.

Public listings and third-party catalogs describe X2 as approximately 1.31 m tall and ~35 kg, with a multi-DoF bionic structure and battery power sized for lab work and demos. X2 models have been demonstrated performing expressive behaviors such as walking, running, dancing, and even bicycling during showcase events, reflecting a design emphasis on agility and lifelike motion.

Design and Features

Compact, human-compatible form factor

At around 1.31 m height and ~35 kg mass, the X2 footprint is manageable for indoor research spaces, classrooms, and public venues. Its size/weight balance targets safe interaction and easy transport while preserving human-scale reach for common objects.

High-DOF bionic body

Agibot references a high-DOF mechanical architecture on X2, with external sources citing configurations in the 27–31 DoF range depending on variant (e.g., “X2 Lite” vs. other trims). The multi-joint design enables expressive upper-body gestures and dynamic lower-body motion for demonstrations and interaction tasks.

Series variants and auto-charging option

AgiBot’s product pages distinguish X2 from X2 Ultra. The Ultra model can be configured for autonomous docking and charging via a dedicated station, designed to support longer duty cycles without operator intervention. (The base X2 does not include the auto-charge feature by default.)

Developer-first software stack (AimDK_X2)

The company’s AimDK_X2 framework exposes task-level programming, access to sensor streams, and robot behavior control, intended for secondary development by labs and integrators. Documentation outlines interfaces, computing resources, and system architecture for building customized applications on X2 hardware.

Demonstrated agility and interaction

Media demonstrations show X2 performing nimble dances, gestures, and balanced locomotion in crowded venues; coverage has highlighted X2’s larger foot pads for stability and its more nimble style relative to Agibot’s taller A2 line.

Technology and Specifications

Because Agibot offers multiple X2 configurations, specifications can vary by option pack and release. Representative figures from manufacturer-verified catalogs and reseller listings include:

• Height & mass: ~1.31 m, ~35 kg.

• Degrees of Freedom (DoF): model-dependent; ~27–31 DoF reported across X2 variants (e.g., X2 Lite: 27 DoF).

• Battery / runtime: published capacities around ~500 Wh and up to ~2 hours runtime depending on activity and configuration.

• Walking speed: references range from ~1.5 m/s typical to ~2 m/s in listings for specific trims. (Real-world performance depends on terrain and gait.)Charging: optional auto-docking capability on X2 Ultra with a dedicated station.

• Software / SDK: AimDK_X2 task framework, open interfaces for sensing and control; intended for secondary development in research and applications.

Agibot positions X2 within a broader portfolio (e.g., A2, G1), and has publicly discussed mass-production ambitions and funding milestones as part of China’s push into embodied AI; the X-series fits the firm’s strategy of combining agile mechanics with AI-first tooling.

Applications and Use Cases

Research and education

With its developer framework and manageable size, X2 is frequently targeted at university labs, vocational training, and embodied AI research. AimDK_X2 provides access to sensor data, motion primitives, and task APIs, enabling studies in locomotion, HRI, and manipulation planning.

Public interaction and entertainment

Showcase videos and event coverage emphasize expressive motion, dance routines, and crowd interaction, making X2 suitable for museums, expos, retail promotions, and edutainment scenarios that benefit from a personable robot presence.

Light service and patrol

AgiBot and third-party write-ups point to light service tasks such as guidance, reception, and simple patrol rounds in low-risk environments, where autonomy, waypoint navigation, and social presence are valued more than heavy payloads.

Prototype industrial workflows

Although X2 is not a heavy-duty factory robot, its biped mobility and human-scale reach allow proof-of-concept demonstrations for assembly assistance, quality checks, or line-side support under controlled conditions—use cases that inform future deployments of larger industrial humanoids.

Advantages / Benefits

• Agility in tight spaces: The half-size format (1.31 m) and moderate mass (~35 kg) make X2 easier to deploy indoors than full-size humanoids while retaining human-like motion.

• Developer-ready framework: AimDK_X2 lowers the barrier for secondary development, exposing task-level APIs for embodied AI research and custom apps.

• Demonstrated stability: Event coverage highlights larger feet and stable gaits, helpful for public demos and HRI.

• Series flexibility: Options like X2 Lite (open-source emphasis) and X2 Ultra (auto-docking) let buyers tune features to budget and duty cycle.

• Ecosystem momentum: Agibot’s broader portfolio and China’s policy/funding focus on humanoids suggest ongoing platform evolution and supply-chain maturity.

FAQ Section

What is Agibot X2?
Agibot X2 is a compact humanoid robot series (~1.31 m, ~35 kg) designed for embodied AI research, public interaction, and light service tasks, supported by the AimDK_X2 developer framework.

How does the X2 work?
X2 combines a multi-DoF bionic body, onboard computing, and sensor fusion with the AimDK software stack. Developers use task-level APIs to command locomotion, gestures, and interactions while accessing sensor streams for perception and control.

Why is X2 important?
It bridges the gap between lab prototypes and public-facing demonstrations, offering a developer-friendly, human-compatible platform that advances embodied AI without the cost and complexity of full-size humanoids.

What are the benefits of the X2 Ultra?
X2 Ultra supports autonomous charging at a dedicated dock, extending uptime and reducing manual intervention—useful for showcases or continuous public interaction.

How many degrees of freedom does X2 have?
It’s variant-dependent: external sources cite ~27 DoF for X2 Lite and up to ~31 DoF for other trims that emphasize expressive motion. Always confirm the exact joint configuration in the quotation.

Summary

Agibot X2 is a nimble, half-size humanoid that pairs agile mechanics with a developer-ready software framework. With representative specs around 1.31 m and ~35 kg, optional auto-docking on X2 Ultra, and variant-dependent ~27–31 DoF motion, the series offers a practical platform for embodied AI research, public interaction, and light service scenarios. The combination of AimDK_X2, manageable form factor, and a growing Agibot ecosystem makes X2 a credible choice for teams seeking a versatile humanoid that is easier to deploy than full-size industrial models.
