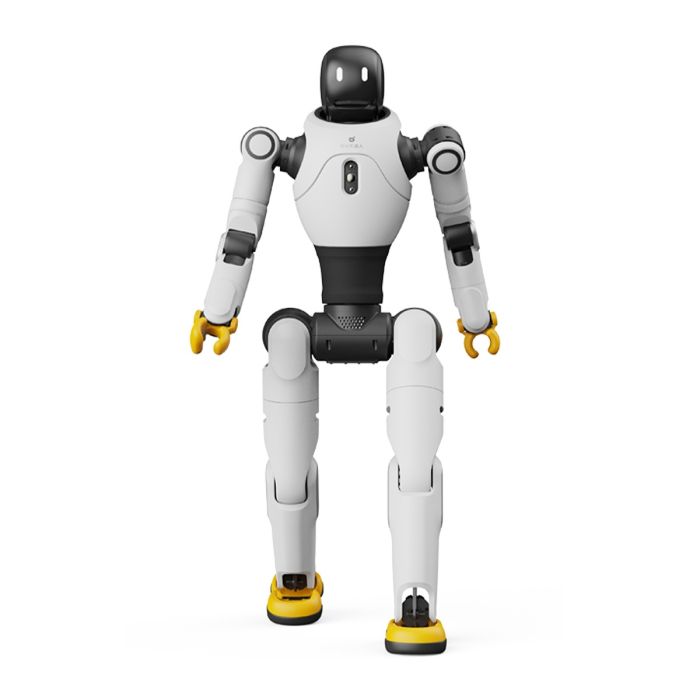

AgiBot X2 Lite Full-Stack Open Source Humanoid Robot

AgiBot X2 Lite Full-Stack Open Source Humanoid Robot

Agibot X2 Lite is the entry-tier model in Agibot’s X2 family of compact humanoid robots. It is designed primarily for education, research and development (R&D), and embodied-AI coursework, offering a human-compatible footprint around 1.31 m in height with a mass near 35 kg. Public reseller specifications list ~27 degrees of freedom (DoF) on the Lite configuration, 5-DoF arms, runtime up to ~2 hours, and demonstrated speed up to ~2 m/s, making it suitable for labs and classrooms that need approachable hardware for locomotion, interaction, and manipulation foundations.

All X2 variants—including Lite—are supported by Agibot’s AimDK_X2 developer framework, a task-level SDK that exposes motion control, preset behaviors, sensor access, and integration points commonly used alongside ROS-adjacent workflows.

Design and Features

Compact, human-compatible format

The X2 platform is built for indoor environments, with a series height near 1.31 m (≈ 131 cm). This scale eases transport, staging, and human–robot interaction (HRI) demonstrations while providing human-scale reach to doors, handles, and table-height objects. Agibot’s official materials characterize the X2 series as agile and indoor-ready, with documented walking performance up to ~1.8 m/s and typical operation at or below 0.8 m/s (series context).

Entry-tier dexterity for education and R&D

Lite is positioned for affordability and teaching, with catalogued ~27 DoF total and 5-DoF arms. This supports foundational coursework in balance, gait, and simple grasps while keeping integration overhead low. Where advanced manipulation or richer perception is required, programs often compare Lite with X2 Pro or X2 Ultra.

Developer-first software (AimDK_X2)

AimDK_X2 provides task-level APIs and examples for locomotion, gestures, voice interaction hooks, and behavior scripting, enabling rapid “first demo” timelines for student teams and researchers. Documentation includes a startup guide, mode switching for walking/running, and code samples for synchronized motion and speech actions.

Baseline perception and communications

While sensor configurations vary by bundle, the X2 family supports interactive cameras and audio I/O; higher-tier variants (not Lite by default) add RGB-D and multi-line LiDAR for mapping and obstacle awareness. Connectivity across the series includes Wi-Fi/Bluetooth, with optional 4G/5G modules referenced for upper trims.

Technology and Specifications

Figures for Lite are typically provided through authorized reseller listings and developer docs for the X2 platform. Verify final configuration in your quotation.

• Height & mass (Lite listing): 131.0 cm, 35 kg.

• Total DoF / arm DoF: 27 DoF total, 5 DoF per arm (Lite).

• Runtime & speed: up to ~2 hours per charge; speed up to ~2 m/s (Lite reseller), with official series guidance citing up to ~1.8 m/s and typical ≤ 0.8 m/s for general operation.

• Developer stack: AimDK_X2 task-level framework for behavior control, motion modes, sensor access, and example code.

• Startup & handling: documented no-gantry startup flows (supine or seated) for labs and classrooms.

Contextually, credible press coverage in January 2026 also describes Agibot’s compact humanoid format (~1.3 m, ~35 kg) and notes that the base model omits some of the richer sensing found in higher trims—consistent with Lite’s role in the stack.

Applications and Use Cases

Education and curriculum development

• Embodied-AI coursework: gait generation, balance control, and whole-body coordination on a human-scale platform.

• Introductory manipulation: simple grasps and hand-eye coordination with 5-DoF arms.

• HRI fundamentals: gesture, proxemics, and audience-safe demonstrations in classrooms or labs.
  AimDK’s code samples and startup guides reduce setup friction for student teams.

Research sandbox and algorithm prototyping

• Perception–control pipelines: integrate vision and interaction modules and move quickly from scripted behaviors to policy learning.

• Transfer learning: develop on Lite, then port behaviors to Pro/Ultra or other humanoids via similar middleware patterns.

• Benchmarking: use the consistent X2 chassis size to compare locomotion and HRI interventions across cohorts.

Public demos and outreach

• Museum/Expo activations: choreographed motion, call-and-response demos, and safe crowd engagement at modest cost relative to higher-tier hardware.

• STEM engagement: Lite’s scale and expressive motions make it suitable for outreach without the logistics of full-size humanoids.

Advantages / Benefits

• Manageable size for human spaces: ~1.31 m height streamlines indoor deployment, transport, and storage.

• Education-ready dexterity: ~27 DoF with 5-DoF arms is sufficient for foundational manipulation and locomotion studies.

• Developer ecosystem: AimDK_X2 documentation (startup, code samples, motion modes) accelerates onboarding and reproducibility.

• Cost-conscious entry point: Lite prioritizes accessibility, while preserving a path to Pro (higher dexterity) or Ultra (richer perception with RGB-D/LiDAR and docking).

Comparisons

X2 Lite vs. X2 Pro

• Dexterity: Lite at ~27 DoF with 5-DoF arms versus Pro typically cited at ~31 DoF with 7-DoF arms, improving reachability and in-hand adjustment for research tasks.

• Use case: Lite is ideal for introductory R&D and teaching; Pro suits manipulation-centric research and advanced HRI.

X2 Lite vs. X2 Ultra

• Perception & autonomy: Ultra commonly integrates RGB-D and 3D LiDAR and supports autonomous docking/charging for unattended operation; Lite focuses on core locomotion/interaction at lower cost.

Within the X2 series

• Walking performance: series materials cite up to ~1.8 m/s with typical operation ≤ 0.8 m/s; Lite reseller pages list up to ~2 m/s. Real-world speeds depend on gait policy, floor surface, and payload.

AgiBot X2 Lite FAQs

What is Agibot X2 Lite?
Agibot X2 Lite is the entry-tier compact humanoid (~1.31 m, ~35 kg) in the X2 series for education and R&D, typically with ~27 DoF and 5-DoF arms.

How does X2 Lite work?
It combines a bipedal, multi-DoF body with the AimDK_X2 SDK, which exposes motion modes, preset actions, and sensor access so teams can script behaviors and integrate perception without rebuilding low-level control.

Why is X2 Lite important?
It provides a cost-conscious on-ramp to embodied-AI research and HRI education on a human-scale platform, with a development path toward Pro (dexterity) or Ultra (perception & docking).

What are the headline specifications?
131 cm height, 35 kg mass, 27 DoF total with 5-DoF arms, up to ~2 h runtime, and speed up to ~2 m/s (bundle-dependent). Series documentation cites up to ~1.8 m/s with typical ≤ 0.8 m/s.

Does Lite include RGB-D or LiDAR by default?
No. Those sensors are typically associated with X2 Ultra; Lite focuses on the essentials for education and early-stage R&D.

Is special equipment needed to start the robot?
The startup guide documents no-gantry procedures (supine or seated startup), which is convenient for classrooms and labs.

Summary

Agibot X2 Lite offers an approachable, human-scale humanoid for education and research, pairing a compact 1.31 m/35 kg chassis with ~27 DoF and the AimDK_X2 developer stack. For teams prioritizing affordability, quick setup, and reproducible teaching labs, Lite delivers a practical entry point—while preserving a path to X2 Pro (more dexterity) or X2 Ultra (enhanced perception and autonomous docking). Its combination of size, capability, and documentation makes it a credible platform for embodied-AI foundations, HRI coursework, and public demos.
