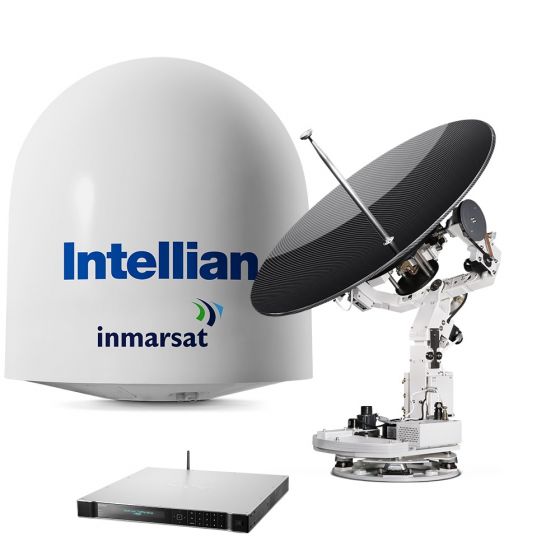

DISCONTINUED - Intellian v100GX VSAT Marine Antenna System

Overview

The v100GX is a 1 meter Ku-band to Ka-band convertible maritime stabilized antenna, a ready-to-use system for the super-fast, GlobalXpress (GX) Ka-band broadband service from Inmarsat.

BRAND:
INTELLIAN
PART #:
v100GX
ORIGIN:
South Korea
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
Out of stock
AVAILABILITY:
DISCONTINUED
Product Code:
Intellian-V110GX-System-V1-110

Intellian v100GX VSAT Marine Antenna System
The Intellian v100GX is a 1 meter Ku-band to Kaband GX convertible maritime stabilized antenna, and ready-to-use system for the super-fast, Global Xpress™ (GX) Ka-band broadband service from Inmarsat.

The v100GX offers a robust, affordable, plug and play conversion kit to enable a smooth upgrade path from Ku to GX service in as little as 10 minutes without requiring a factory trained technician.

The v100GX’s high-gain, highly efficient reflector and tuned radome ensure the best service quality available when configured for Ku or Ka-band GX operation. In addition, the v100GX supports low elevation angle (-20°) capability to guarantee reliable connection at extremely high latitude. The v100GX’s seamless end-to-end solution is to offer hassle-free installation, operation, and maintenance. The v100GX interfaces with Aptus, Intellian’s graphic-based antenna remote control software. The Aptus Software Development Kit (SDK), allows a NOC or service center to integrate antenna monitoring and control into an existing network management system in an easier, more user-friendly, and convenient manner.

The v100GX is available in 2 models that support 8W and 16W BUC sizes. All models are built with Co-pol and Cross-pol feed and come equipped with Intellian’s Global PLL LNB as standard

Simple conversion from Ku-band to GX
The v100GX can be easily and quickly converted from a Ku-band system to a Ka-band GX system with an integrated RF module consisting of the BUC and LNB. The BUC and LNB assembly is attached to the rear side of the reflector in a simple process, with no need to balance the system after the conversion. The Ku-band feed can be easily and swiftly replaced with the Ka-band feed which is included in the GX Conversion kit.

Ku and Ka-band optimized reflector
The v100GX is designed and engineered to operate on Ku and Kabands while maximizing the RF performance on both bands. The reflector of the v100GX is capable of receiving on either Ku or Kabands, eliminating the need to replace the reflector when switching between bands.

Frequency tuned radome
To ensure efficient operations for both Ku-band VSAT and Ka-band the radome performance is maximized with an optimized radome design that enhances both the Ka-band and Ku-band system performance.

Patented Intellian Global PLL LNB
The v100GX is equipped with Intellian’s patent pending Global PLL LNB as standard. Intellian’s new Global PLL LNB presents the world’s first Ku-band LNB module capable of receiving a full range of operating frequencies from any VSAT satellite around the globe. This unique and innovative capability of remotely changing the frequencies of the LNB makes the v100GX by far the only system that is ready for Global Ku-band VSAT service to date.

Auto beam switching (ABS) available
The v100GX supports ABS via Open AMIP protocol of iDirect and the ROSS Open Antenna Management (ROAM) protocol of Comtech making phone calls, texting SMS messages just like on shore.

Gyro-Free satellite search capability
Intellian’s new generation Gyro-free satellite search function enables the v100GX to acquire and lock onto the satellite without requiring a separate input from the ship’s gyrocompass.

Intellian v100GX System Diagram

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEMARITIME
BRANDINTELLIAN
PART #v100GX
NETWORKINMARSAT
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT GX
ANTENNA SIZE100 cm
WEIGHT128 kg (282 lb)
ACCESSORY TYPEANTENNA
RADOME HEIGHT151.0 cm (59.63 inch)
RADOME DIAMETER138 cm (54.3 inch)

Intellian v100GX Features


Simple Conversion from Ku to Ka
Converts easily and quickly from Ku-band system to a Ka-band system with a simple integrated RF module consisting of the BUC and LNB
The combined RF BUC & LNB assembly is attached to the rear side of the reflector, with no need to rebalance the system after conversion

Gyro-Free Satellite Search Capability
No external heading device input required
Reduces installation time, automated Bow offset using Aptus

Remote Access via Aptus
Built-in web interface for remote management, control and updating brings tech support aboard the vessel
Automated Diagnostics including internal Spectrum Analyzer

Global Satellite Library
Preinstalled database of detailed satellite data
Customizable satellite library for a specific network

Auto Beam Switching (ABS)
Supports ABS via the OpenAMIP protocol from iDirect and the ROSS Open Antenna Management (ROAM) protocol from Comtech

Global PLL LNB
Standard equipped with Intellian's patented Global PLL LNBs
The Global PLL LNB is the world's first Ku-band LNB module capable of receiving a full range of operating frequencies from any VSAT satellite around the globe

Optional Dual VSAT Mediator
Ensures uninterrupted broadband communications
Communicates simultaneously with two Antenna Control Units (ACU). Ideal for redundant antenna environments
Seamlessly switches between two antennas

Global Support
3-Year Global Warranty backed by over 300 Intellian Service and Support centers around the world

3 Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017

Anatel Approved
Approved for sale and operation in Brazil

Inmarsat Global Xpress (GX) Coverage Map


Inmarsat Global Xpress GX Coverage Map

This map depicts Inmarsat’s expected coverage following the commercial introduction of Inmarsat-5 F4 (I-5 F4). The position of I-5 F4 shown in this map is indicative only. This map does not represent a guarantee of service. Global Xpress coverage January 2017.
