Iridium Edge™
In stock
- BRAND:
- IRIDIUM
- MODEL:
- EDGE
- PART #:
- EDGE1601
- ORIGIN:
- Thailand
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Iridium-Edge-SBD-Modem

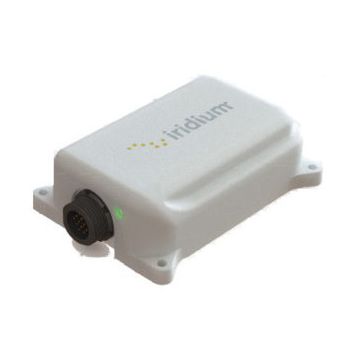

Iridium Edge™
Enable your customers to leverage their existing terrestrial-based solutions for fleet management, telematics, safety and other remote monitoring applications through Iridium Edge™, an off-the-shelf, reliable satellite communications device that complements existing cellular solutions to create dual-mode connectivity for the most remote and inaccessible areas of the world.
Fast time-to-market is a critical component in today’s highly competitive communications environment. Iridium Edge™ is a turnkey, environmentally sealed, rugged hardware device that reduces the cost and complications associated with hardware development, manufacture and certification of satellite-specific terminal.
Key Features of Iridium Edge™:
- Hardware-ready device for simple, low risk integration
- Low-cost device for affordable customer adoption
- Satellite add-on for truly global coverage
- Off-the-shelf availability for quick time-to-market
- Robust power supply for industrial installations
- Environmentally sealed for harsh conditions
- 180° line of sight for compromised, partially blocked locations
- Iridium Short Burst Data℠ (SBD℠) modem for Iridium's superior network advantages
Key Markets:
- Fleet Management
- Remote Monitoring
- SCADA
- Asset Tracking
- Maritime
Specifications
| MODEL | EDGE |
|---|---|
| PART # | EDGE1601 |
| PRODUCT TYPE | SATELLITE M2M |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM SBD |
| USE TYPE | FIXED, MARITIME, VEHICULAR |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| INGRESS PROTECTION | IP 67 |
| FREQUENCY | L BAND (1-2 GHz) |
| APPLICATIONS | ASSET TRACKING, ENVIRONMENT & SAFETY MONITORING, FLEET MANAGEMENT, REMOTE AUTOMATION & CONTROL |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| CONSTELLATION | 66 SATELLITES |
| LENGTH | 130 mm (5.11") |
| WIDTH | 80 mm (3.15") |
| DEPTH | 30 mm (1.18") |
| WEIGHT | 330 grams (11.64 oz) |
Feature
Network:
- Message Size: 240 bytes (Receive), 370 bytes (Transmit)
- Frequency: 1616 – 1626.5 MHz
Mechanical:
- Dimensions: 130 mm (L) x 80 mm (W) x 30 mm (H)
- Ingress Protection: IP 67
- Side and bottom cable exits
Environmental:
- Operating temperature range: -40C to 85C
- Storage temperature range: -40C to 85C
Interfaces:
- RS232 AT command interface
- On/Off control lines
Power:
- Power Supply ( 9-32V), SAE J1455 Load dump protected
- Reverse Polarity Protection
- Maximum Power: 1.6W (peak for short transmit burst)
- Low Power Modes: < 100uA
Certifications:
- Iridium® satellite network certification
- FCC, IC, CE, Australia approvals
- RoHS compliant
Iridium Global Coverage Map
Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
