Unitree G1 Ultimate C Humanoid Robot with 5 Finger Hands (G1EDU-U5)

Unitree G1 Ultimate C Humanoid Robot with 5 Finger Hands (G1EDU-U5)

The G1 EDU Ultimate C (U5) features 41 total degrees of freedom, NVIDIA Jetson Orin NX 16GB (100 TOPS) AI compute, dual encoders per joint, a local air cooling system, and a 13-series 9,000 mAh quick-release lithium battery providing approximately two hours of runtime. Full secondary development is supported through Python, C++, and ROS 2 SDK access.

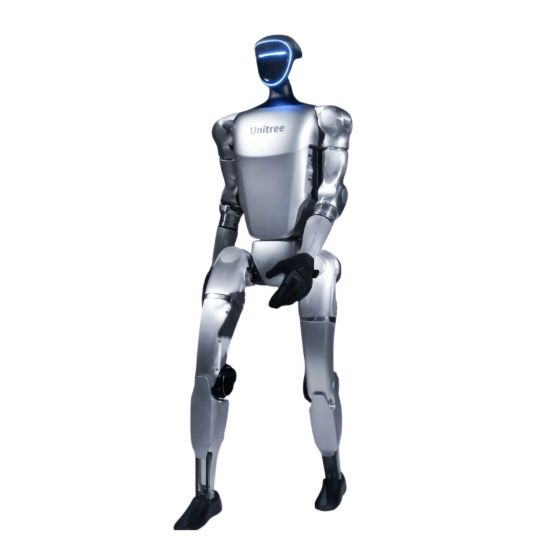

G1 Platform: Foldable Bipedal at 132 cm, 35 kg

The G1 EDU Ultimate C uses the standard G1 body frame: 1320 x 450 x 200 mm standing, folding to 690 x 450 x 300 mm for transport, approximately 35 kilograms with battery. The foldable design enables single-operator transport, conference deployment, and laboratory relocation without specialized vehicle or equipment requirements.The aluminum alloy structure, ABS/PC blend exterior panels, full joint hollow internal wiring design, and local air cooling system for the NVIDIA Jetson Orin are all standard G1 EDU Ultimate tier construction elements retained in the U5. The quick-release 9,000 mAh battery is swappable in under 30 seconds, enabling sustained all-day research sessions with a battery rotation schedule.

G1 Platform: Foldable Bipedal at 132 cm, 35 kg

The G1 EDU Ultimate C uses the standard G1 body frame: 1320 x 450 x 200 mm standing, folding to 690 x 450 x 300 mm for transport, approximately 35 kilograms with battery. The foldable design enables single-operator transport, conference deployment, and laboratory relocation without specialized vehicle or equipment requirements.

The aluminum alloy structure, ABS/PC blend exterior panels, full joint hollow internal wiring design, and local air cooling system for the NVIDIA Jetson Orin are all standard G1 EDU Ultimate tier construction elements retained in the U5. The quick-release 9,000 mAh battery is swappable in under 30 seconds, enabling sustained all-day research sessions with a battery rotation schedule.

41 Degrees of Freedom: Ultimate Tier Body with Five-Finger Hands

The G1 EDU Ultimate C's 41-DOF total is slightly below the 43 DOF of the Dex3-1-equipped U3 and U4 configurations — reflecting the difference in per-hand DOF between the Inspire RH56DFQ (6 DOF per hand, 12 total for bilateral) and the Dex3-1 (7 DOF per hand, 14 total for bilateral). The body configuration remains the full Ultimate tier:

Legs: Six degrees of freedom per leg (bilateral, 12 total) with extra-large joint ranges enabling athletic dynamic behaviors — confirmed world records including 1.4-meter long jump and side flip — as well as stable walking and stair navigation.

Arms: Seven degrees of freedom per arm (bilateral, 14 total) including wrist pitch ±92.5° and wrist yaw ±92.5° from the EDU Plus tier upgrade — essential for approaching the Inspire hands toward objects from any target orientation.

Waist: Three degrees of freedom (yaw ±155°, pitch, roll) for torso rotation, forward-backward lean, and lateral tilt.

Inspire RH56DFQ Hands: Six degrees of freedom per hand (bilateral, 12 total), bringing the body-plus-hands total to 41.

Inspire RH56DFQ Five-Finger Dexterous Hands

The Inspire RH56DFQ is a commercially available research-grade five-finger robotic hand from Inspire Robots (Beijing). The hand designation "RH56DFQ" encodes key specifications: RH (Right Hand in the -2R variant, Left Hand in the -2L), 56 (joint count in the full hand), DF (dexterous finger), Q (a configuration designation). Each hand features:

12 total joints across the five fingers and palm, with 6 independently actuated degrees of freedom controlling the grasp configuration.

Five independent fingers: Thumb, index, middle, ring, and little finger — all five fingers are independently actuated, enabling the full range of human grasping postures. The independent ring and little finger actuation distinguishes the five-finger RH56DFQ from three-finger systems that cannot access these digits.

Force-position hybrid control: The Inspire hands support the same force-position hybrid control mode as the Dex3-1, enabling compliant contact with force-limited closure — important for handling deformable or delicate objects without the distributed tactile sensing the U4 adds.

Robotics-optimized design: The RH56DFQ is designed for robotic integration rather than prosthetic use, with attention to wrist interface standardization, waterproofing options, and compatibility with robotic arm control systems.

Technology and Specifications

Full G1 EDU Ultimate C (U5) Specifications

NVIDIA Jetson Orin NX 16GB: 100 TOPS for Five-Finger Policy AI

The NVIDIA Jetson Orin NX 16GB provides 100 TOPS for running neural network policies that control the U5's five-finger hands alongside the full body. Five-finger grasping policies are computationally more complex than three-finger equivalents because the action space is larger — 12 hand joints instead of 14 Dex3-1 joints but across 5 independent fingers rather than 3 — and the observation space must process five independent finger contact states.

The 16GB memory configuration is important for the larger visual grasping models that five-finger manipulation research increasingly requires: transformer-based VLA policies and visual grasping networks require 8 to 16GB of GPU memory for full-precision deployment. The Jetson Orin's CUDA support enables standard PyTorch and TensorRT-based frameworks to run on-device without requiring off-robot compute servers.

Dual Encoders Per Joint

Each joint across the U5's 41-DOF system is monitored by dual encoders — one at the motor side and one at the output side. For five-finger hand control, this dual-encoder configuration is particularly relevant: the wrist joint dual encoders provide more accurate wrist position feedback that matters for precise hand orientation during grasp approach. The dual encoder data enables backlash compensation in the wrist joints, reducing the positioning error that otherwise affects the accuracy of hand placement at grasp targets.

UnifoLM-VLA-0 for Five-Finger Manipulation

The March 2026 open-source release of UnifoLM-VLA-0 (built on Qwen2.5-VL-7B) covers 12 manipulation task categories. For the U5's five-finger configuration, the relevant categories include those requiring human grasp pattern coverage — tasks involving tool use, precision pick-and-place, and object handover where the full five-finger taxonomy is needed. The open-source release enables U5 buyers to start from a working manipulation policy baseline rather than training from scratch, accelerating the time to productive research.

Applications and Use Cases

Five-Finger Grasping Research with Full Human Grasp Taxonomy

The U5's primary research contribution over the U3 and U4 is coverage of the complete human grasp taxonomy — not only the three-finger configurations (power, precision, tripod) but also the ring and little finger inclusion that enables hook grasps, tool grasps requiring four or five contact points, and the nuanced multi-finger coordination of everyday object handling. Research on grasping policy generalization — training neural networks to predict appropriate grasp configurations for arbitrary novel objects — benefits from a five-finger substrate that can represent all human grasp types.

Tool Use and Functional Hand Positions

Tools designed for human hands require specific finger positions that three-finger systems cannot always replicate. A screwdriver requires the thumb, index, and middle finger in a precision pen grip; scissors require two-finger hook operation; a hammer requires a four-finger power grip with thumb wrap. The U5's Inspire RH56DFQ five-finger configuration can form these tool-specific hand positions, making it the appropriate G1 EDU configuration for tool-use robotics research.

Robot Learning from Human Demonstration

Imitation learning — training robot manipulation policies from human demonstrations captured through teleoperation or motion capture — requires the robot's hand to match the human demonstrator's grasping patterns closely enough that the demonstrations transfer. Five-finger hands reduce the kinematic gap between human and robot hand, improving the quality of imitation learning from human demonstrations and making the captured demonstration data more directly applicable to the robot's actual manipulation capability.

Bimanual Manipulation Studies

With bilateral Inspire RH56DFQ hands on both arms, the U5 supports bimanual manipulation research — tasks requiring both hands to work together on the same object or task. Bimanual object assembly, two-handed grasping of large objects, and handover sequences that require both hands to operate simultaneously are all enabled by the U5's bilateral five-finger configuration.

Prosthetics-Adjacent Research and Clinical Applications

The Inspire RH56DFQ's use in robotic integration contexts — rather than prosthetics — makes the U5 appropriate for research studying how robotic five-finger manipulation can assist or complement prosthetics research without the regulatory considerations of actual prosthetic device development. Studies of robotic hand comparison to prosthetic performance, manipulation benchmark creation for the five-finger dexterity evaluation, and simulation-based rehabilitation robot prototyping can use the U5's RH56DFQ configuration as a validated robotic five-finger substrate.

Comparison: U5 vs. U4 at the Same Price ($66,277)

The U5 and U4 are priced identically at $66,277 — the central procurement decision at this price tier is which research capability the program requires:

BotInfo.ai's framework applies directly: "3-finger (Dex3-1): 7 DOF/hand, simpler, 80–90% of use cases, lower cost. 5-finger (Inspire/BrainCo): 6 DOF/hand, human grasp taxonomies, tool use, HRI. Choose 3-finger unless you need human-like grasping." At the same price point, the U5 adds five-finger coverage at the cost of tactile sensing capability. Research programs should select based on which capability gap is more constraining for their specific research objectives.

U5 vs. U6 (EDU Ultimate D, $73,900): The U6 adds 17 pressure tactile sensors per hand and dual encoder upgrades to the same Inspire RH56DFQ five-finger hands at a $7,623 premium. For research programs where both five-finger kinematics and contact pressure sensing are required, the U6 is the appropriate configuration; for programs where five-finger kinematics alone is sufficient, the U5 at $66,277 is the more cost-effective choice.

Frequently Asked Questions (FAQ)

What is the Unitree G1 EDU Ultimate C (U5)? The Unitree G1 EDU Ultimate C (G1EDU-U5) is a research and education configuration of Unitree's G1 bipedal humanoid robot, featuring 41 total degrees of freedom and dual Inspire RH56DFQ five-finger dexterous hands (RH56DFQ-2R right and RH56DFQ-2L left) without tactile sensors. Each hand has 12 joints and 6 degrees of freedom for full five-finger manipulation. The U5 includes NVIDIA Jetson Orin NX 16GB (100 TOPS), an 8-core CPU, LIVOX MID-360 3D LiDAR, Intel RealSense D435i, dual encoders per joint, local air cooling, a 9,000 mAh quick-release battery (~2 hours), and full Python/C++/ROS 2 SDK. It is priced at $66,277.

What are the Inspire RH56DFQ hands, and what grasps can the U5 perform? The Inspire RH56DFQ (RH56DFQ-2R right, RH56DFQ-2L left) is Inspire Robots' research-grade five-finger dexterous hand with 12 total joints and 6 degrees of freedom per hand. It provides all five independently actuated fingers — thumb, index, middle, ring, and little — enabling power grasps, precision pinch grasps, tripod grasps, hook grasps, lateral key grips, tool grasps requiring all five fingers, and multi-finger coordination grasps for everyday object handling. The Inspire hands use force-position hybrid control for compliant contact with force-limited closure.

What is the difference between the G1 EDU Ultimate C (U5) and Ultimate B (U4) at the same price? Both U4 and U5 are confirmed at $66,277. The U4 (EDU Ultimate B) provides Dex3-1 three-finger hands with tactile sensor arrays — enabling distributed contact pressure sensing for fragile object handling, slip detection, and haptics research. The U5 (EDU Ultimate C) provides Inspire RH56DFQ five-finger hands without tactile sensors — enabling the full human grasp taxonomy for tool use, bimanual manipulation, and five-finger policy research. The U4 reaches 43 DOF (7 DOF per Dex3-1 hand); the U5 reaches 41 DOF (6 DOF per Inspire hand). Choose U4 for tactile sensing research; choose U5 for five-finger grasp taxonomy research.

How does the U5 compare to the U6 (EDU Ultimate D) which adds tactile sensing? The G1 EDU Ultimate D (U6, ~$73,900) adds 17 pressure tactile sensors per hand to the same Inspire RH56DFQ five-finger hand configuration — enabling spatial contact pressure mapping for grasp quality assessment, slip detection, and fine force regulation. The U5 at $66,277 provides the same Inspire five-finger kinematics without tactile sensing at a $7,623 savings. For research where five-finger kinematics alone covers the research objective, the U5 is the appropriate choice; for research requiring distributed contact sensing alongside five-finger dexterity, the U6 justifies the additional investment.

Summary

The Unitree G1 EDU Ultimate C (G1EDU-U5) is the entry point to five-finger dexterous manipulation in the G1 EDU family — the first configuration in the lineup that provides full bilateral five-finger hands (Inspire RH56DFQ-2R and RH56DFQ-2L) covering the complete human grasp taxonomy across power, precision, tripod, hook, tool, and multi-finger coordination grasps, at 41 total degrees of freedom with NVIDIA Jetson Orin 100 TOPS compute and dual encoders per joint. Confirmed at $66,277 — the same price as the U4 which provides three-finger manipulation with tactile sensing — the U5 positions the five-finger research capability choice as a zero-cost-difference decision against tactile sensing capability, making the procurement choice purely a function of research design. Available through seven authorized global distributors with two-month delivery and grant procurement support, the U5 provides the most cost-effective path to bilateral five-finger humanoid manipulation research currently available from any manufacturer shipping at production scale.
